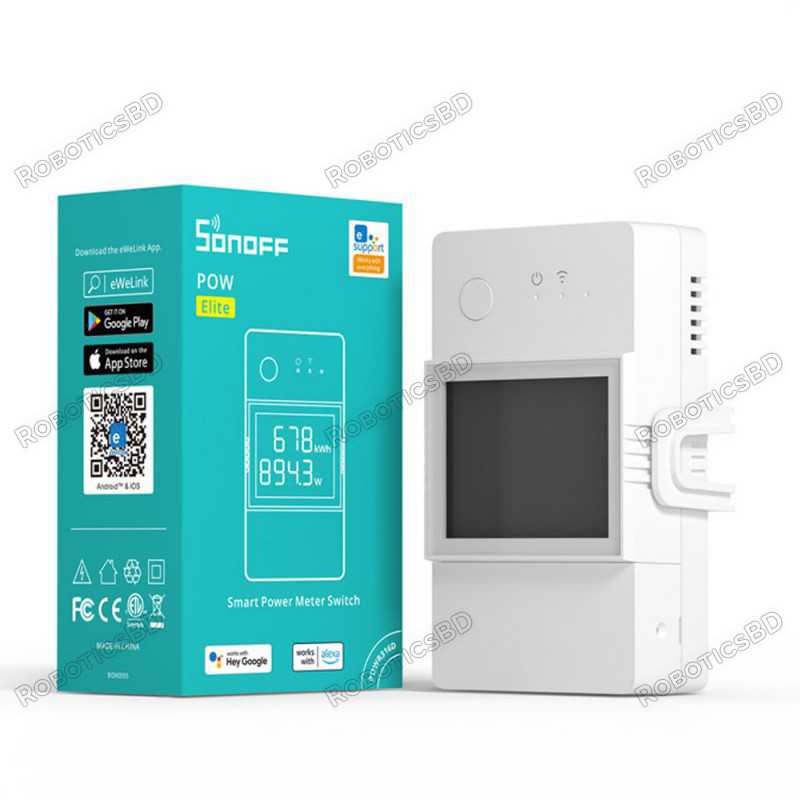

Track the energy consumption of your appliance in real time! SONOFF POW Elite is a power meter switch, newly upgraded ESP32 chip 200% faster compared to the previous ESP8622 chip. With an LCD screen, it can monitor the power, current and voltage of yours real-time appliances and cumulative energy consumption. Supports adding SONOFF devices to Home Assistant for control and automation via the eWeLink add-on. Also, to better help you save energy, POW Elite joins Alexa Energy Dashboard, you can view centrally the overall or individual energy consumption of the device in the dashboard. If you subscribe to the eWeLink Advanced plan, POW Elite is also compatible with IFTTT and eWeLink web control . Featured By RoboticsBD.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Calculate your energy consumption
You can find savings by checking the cumulative daily, monthly and yearly energy consumption, the date dashboard shows real power and POW Elite also has extensive application scenes.
6-month historical data retention
Automatically save your consumption data when you remove appliances or a power outage occurs, furthermore, the data can be kept for up to 6 months which can be exported to Excel on your phone.
Overload protection
Three power, voltage and current threshold parameters that you can set, once any conditions are met, the device will shut down to protect your appliances.
Push notification when the consumption target is reached
Alert when energy consumption exceeds a certain value that you customize and can set both today's goal and current month's goal thresholds.
LCD screen
Track the power, current, voltage and cumulative energy consumption of your appliances in real time on the LCD screen.
Save energy and money
When today's target (kWh) exceeds 28, turn off the water heater, light and air conditioner by setting a clever scene to help you reduce your electricity bills.
Fully functional
POW Elite has all the basic functions, such as app control, voice control with Alexa and Google LAN control, time schedule, inch setting, power on status, etc.
POW Elite with the highest flame retardant grade V-0 enclosure, upgraded terminal wiring and more quantities of tin minimize every detail of safety risk.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
-
Real-Time Energy Monitoring: The Sonoff POWR316D Elite Smart Power Meter Switch provides accurate and real-time data on energy consumption, voltage, current, and power factor.
-
Remote Control: You can turn the switch on/off and monitor energy consumption from anywhere using the app on your smartphone or tablet.
-
Voice Control: The switch is compatible with Amazon Alexa and Google Assistant, allowing you to control it using voice commands.
-
Timer Function: The switch can be programmed to automatically turn on/off connected appliances at specific times, providing greater control and energy efficiency.
-
Overload Protection: The switch has built-in overload protection to protect connected appliances from overloading and damage, ensuring safe and secure operation.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Template |
Sonoff POWR316D - POWR316D |
| Input Output POWR316D |
100-240 V ~ 50/60 Hz 16 A max |
| Input Output POWR316D |
100-240V ~ 50 / 60Hz 16A max |
| MCU |
ESP32 |
| Wifi |
IEEE 802.11 b / g / n 2.4 GHz |
| Antenna |
PCB board with antenna |
| Working humidity |
5% -95% RH, non-condensing |
| Working temperature |
-10 ° C ~ 40 ° C |
| Installation |
In watertight box or on DIN rail |
| Wiring |
In the |
| Work with |
Amazon Alexa, Google Assistant |
| Material |
PC V0 |
| Dimensions |
98x54x31mm |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x Sonoff POWR316D Elite Smart Power Meter Switch
