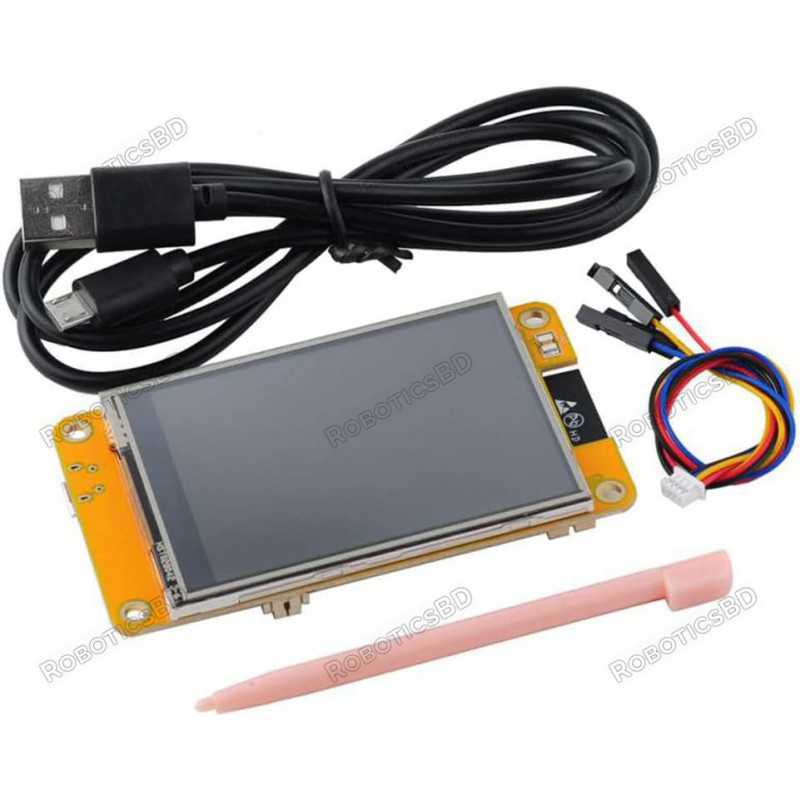

ESP32 Arduino LVGL WIFI & Bluetooth Development Board 2.8" 240*320 Smart Display Screen

RBD-2485

  • ESP32 development board with 2.8" TFT LCD display
  • Dual-core CPU, clock frequency up to 240MHz
  • Supports LVGL, Arduino, and Wi-Fi and Bluetooth
BDT 2,250.00
BDT 2,250.00 BDT 2,250.00 BDT 2,250.00 BDT 2,250.00
Tax included Tax excluded Tax included Tax excluded
BDT 2,250.00 Tax excluded
BDT 2,250.00 Tax included
BDT 0.00 Tax
BDT 2,250.00 Tax excluded
BDT 0.00 Tax
BDT 2,250.00 Tax included
Quantity
6 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The ESP32 Arduino LVGL WIFI&Bluetooth Development Board 2.8" 240*320 Smart Display Screen is a powerful and versatile development board that is perfect for a variety of projects. It features a dual-core CPU, 2.8" TFT LCD display, and support for LVGL, Arduino, Wi-Fi, and Bluetooth.
The ESP32-2432S028 development board is based on the company's ESP32-DOWDQ6 controller, which integrates a wealth of resource peripherals, including high-speed SDIO, SPI, and UART. It also supports automatic download, making it easy to get started with your project.
The development board comes with a 2.8" TFT LCD display with a resolution of 240*320 pixels. This display is perfect for creating user interfaces and displaying graphics.
The ESP32 Arduino LVGL WIFI&Bluetooth Development Board 2.8" 240*320 Smart Display Screen is also compatible with the Arduino IDE, making it easy to develop your project using Arduino code.
Product Features:
Dual-core CPU, clock frequency up to 240MHz
2.8" TFT LCD display with a resolution of 240*320 pixels
Supports LVGL, Arduino, Wi-Fi, and Bluetooth
Automatic download
Breadboard compatible
Product Applications:
Smart displays
IoT devices
Wearable devices
Industrial automation
Robotics
S33bbf1eb2b2f4c07a642fa37e70df295t.pngS17c1f6bbd6844eaebe08d551b4bc2461K.pngS2631d699e7be4e5f8427e6091a9d26b3F.jpgS98997c237f1d4ada8726216e966984265.jpg
Sd2562aa2a11041d684c2b0827c64e093C.pngS60df131d992547de97e82b88f869d172n.pngS89dbc17bcda94ccabf6577b00fa059c4u.jpgSf455736beadc424e9e4662cc5dd8239cd.pngS4113ab73e43440c5ab84c3ff33d8341bJ.png

ESP-32S ESP-WROOM-32 ESP32 ESP-32 Bluetooth e WIFI Dual Core CPU a Basso Consumo energetico MCU modulo ESP-32

Parameter：

Use a low-power dual-core 32-bit CPU, which can be used as an application processor.

The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS

Built-in 520 KB SRAM

Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces

Support OV2640 and OV7670 cameras, built-in flash

Support picture WiFI upload

Support TF card

Support multiple sleep modes.

Embedded Lwip and FreeRTOS

Support STA/AP/STA+AP working mode

Support Smart Config/AirKiss one-click network configuration

Support secondary development

Specifications

Working voltage 4.75-5.25V

SPIFlash default 32Mbit

RAM internal 520KB

Wi-Fi 802.11b/g/n/e/i

Bluetooth Bluetooth 4.2BR/EDR and BLE standard

Support interface (2Mbps) UART, SPI, I2C, PWM

Support TF card, maximum support 4G

IO port 9

Serial port rate default 115200bps

Spectrum range 2400 ~2483.5MHz

Antenna form Onboard PCB antenna, gain 2dBi

Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE

Packaging method DIP-16

Transmit power 802.11b: 17±2dBm (@11Mbps)

802.11g: 14±2dBm (@54Mbps)

802.11n: 13±2dBm (@MCS7)

Receiving sensitivity CCK, 1Mbps: -90dBm

CCK, 11Mbps: -85dBm

6Mbps(1/2BPSK): -88dBm

54Mbps (3/464-QAM): -70dBm

MCS7 (65Mbps, 72.2Mbps): -67dBm

Power consumption Turn off the flash: 180mA@5V

Turn on the flash and adjust the brightness to the maximum: 310mA@5V

Deep-sleep: The lowest power consumption can reach 6mA@5V

Moderm-sleep: the lowest can reach 20mA@5V

Light-sleep: the lowest can reach 6.7mA@5V

Security WPA/WPA2/WPA2-Enterprise/WPS

Working temperature -20 ℃~ 70 ℃

Storage environment -40 ℃~ 125 ℃, <90%RH

Application

Home smart device image transmission

Wireless monitoring

Smart agriculture

QR wireless recognition

Wireless positioning system signal

And other IoT applications

Product Details
RBD-2485
6 Items

Specific References

EAN13
2485
