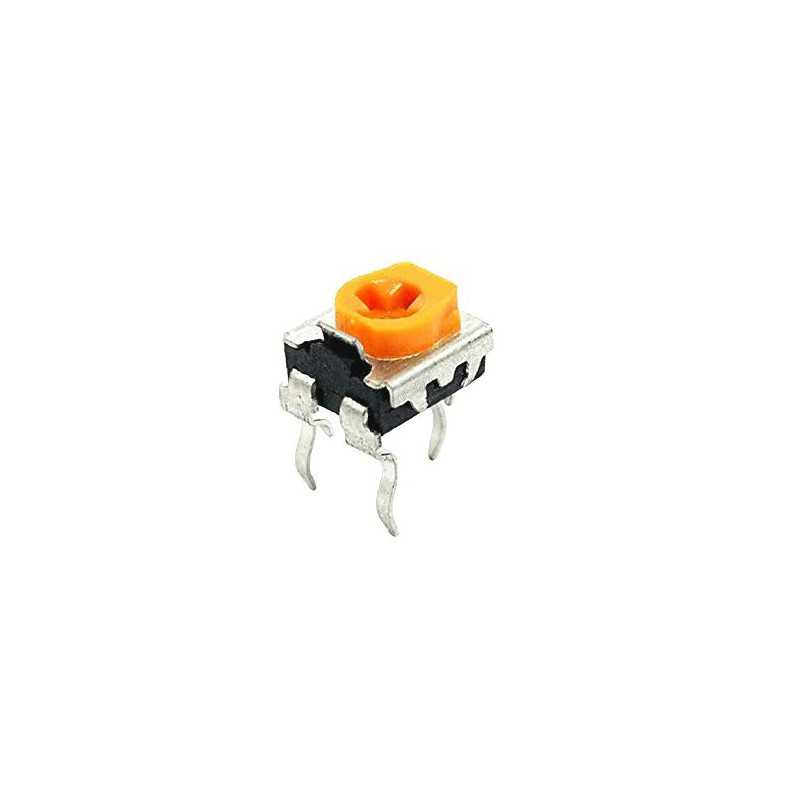

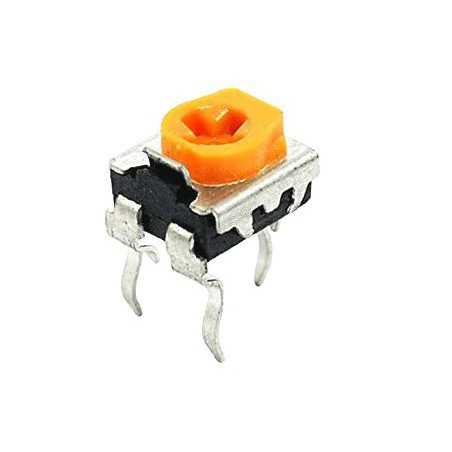

A 5K ohm 502 variable resistor potentiometer is an electronic component used to adjust or vary the resistance in an electrical circuit. It has a maximum resistance of 5 kilo-ohms (5,000 ohms) and is designed to be adjusted with a screwdriver or other tool.
The "502" in the name refers to the physical size of the potentiometer, which is a common size for trimmer potentiometers. The term "trimmer" refers to the fact that this type of potentiometer is often used to fine-tune or "trim" a circuit to achieve the desired performance.
The potentiometer is single-turn, which means that it can be adjusted through a single rotation of the shaft. The color yellow is simply the color of the casing or knob on the potentiometer, which can be helpful in identifying it among other components in a circuit.. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Adjustable resistance - Potentiometers allow the resistance in a circuit to be adjusted by turning a knob or dial.
- Precise control - Potentiometers can provide very fine control over resistance, allowing for very precise adjustments in a circuit.
- Versatility - Potentiometers can be used in a wide variety of circuits and applications, making them a versatile component.
- Compact size - Potentiometers come in a range of sizes, but are often quite small, making them useful in compact or space-constrained designs.
- Cost-effective - Potentiometers are typically relatively inexpensive components, making them an affordable option for many applications.
- Fine-tune your circuits with a 5K ohm potentiometer.
- Control motor speed or tuning with a 502 potentiometer.
- Rotary knob for easy resistance adjustment.
- Linear or logarithmic taper options available.
- Resistive component for use in PCB and other electronic applications.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Volume - Potentiometers are commonly used to control the volume in audio circuits.
- Light - Potentiometers can be used to adjust the brightness of a light.
- Speed - Potentiometers can be used to control the speed of a motor or other device.
- Temperature - Potentiometers can be used as a variable resistor in a temperature control circuit.
- Tuning - Potentiometers are commonly used in tuning circuits, such as in radios or other electronic devices.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Resistance |
5 kilo-ohms (5,000 Ω) |
| Tolerance |
±10% |
| Power Rating |
0.2 watts |
| Temperature Coefficient |
±250 ppm/°C |
| Number of Turns |
Single |
| Mechanical Rotation Angle |
220° |
| Operating Temperature Range |
-55°C to +125°C |
| Mounting Type |
Through-hole |
| Dimensions |
6 mm x 6 mm x 5 mm |
| Color |
Yellow |
| Applications |
Audio, lighting, temperature control, tuning, speed control, etc. |
| Shipment Weight |
0.005 kg |
| Shipment Dimensions |
3 × 3 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x 5K Ohm 502 Variable Resistor Potentiometer
