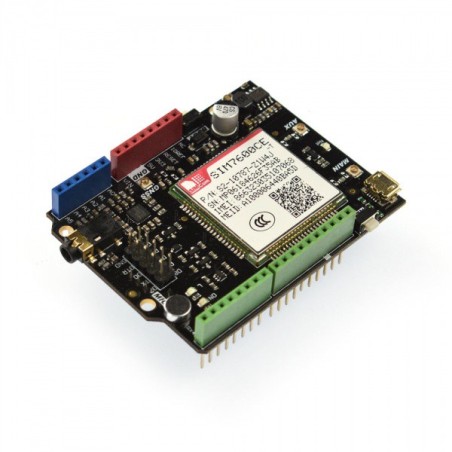

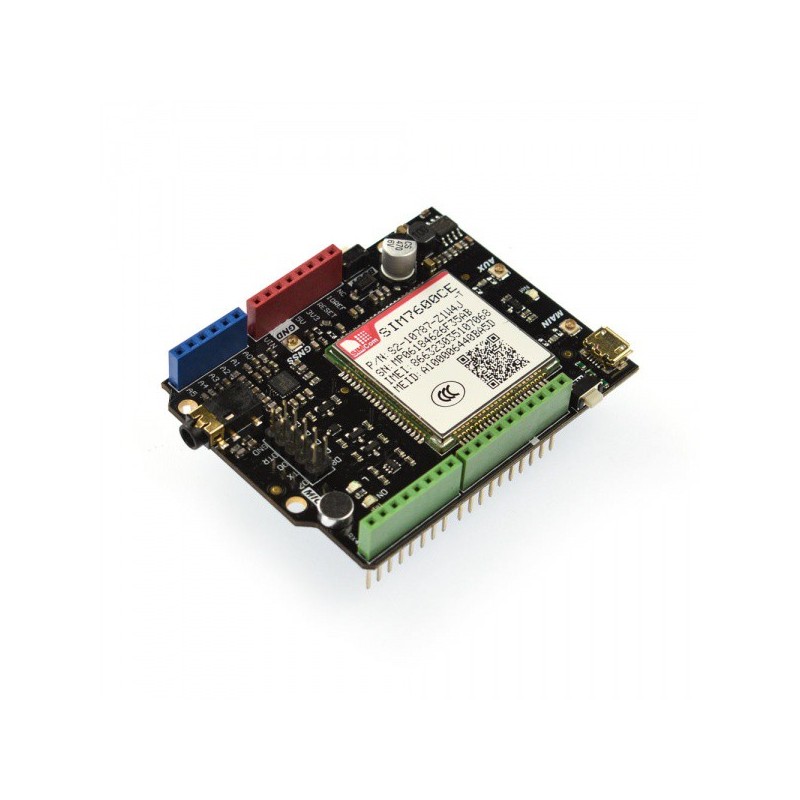

SIM7600G-H CAT4 4G (LTE) Shield for Arduino

Reference RBD-2999

Brand DFRobot

SIM7600G-H CAT4 4G (LTE) Shield with global 2G/3G/4G support for Arduino
Offers LTE CAT4 speeds: 150Mbps download, 50Mbps upload
Built-in GNSS positioning with GPS, GLONASS, and BeiDou (BD) support
Compatible with Arduino UNO, Leonardo, Mega, and standard pinout controllers
Supports SMS, voice, data, and multiple network protocols (TCP/IP, HTTP, FTP, DNS)
Ideal for IoT, logistics tracking, remote monitoring, and mobile communication projects

Description
Product Details

Description

The SIM7600G-H CAT4 4G (LTE) Shield is a powerful Arduino-compatible expansion board that brings high-speed internet access, global wireless communication, and GNSS satellite positioning to your projects. Supporting LTE-TDD, LTE-FDD, WCDMA, and GSM bands, this module ensures reliable connectivity worldwide. It delivers CAT4 4G performance with download speeds of up to 150Mbps and upload speeds of up to 50Mbps, making it ideal for data-intensive IoT applications. Equipped with GPS, GLONASS, and BeiDou support, it provides accurate positioning and tracking. The shield also supports SMS, voice calls, audio playback/recording, and multiple protocols such as TCP/IP, HTTP, HTTPS, FTP, and DNS. With two onboard LED indicators for power and network status, it simplifies development and monitoring. Perfect for IoT, logistics, mobile tracking, and remote monitoring, this shield is an excellent solution for projects requiring reliable 4G communication and GNSS navigation. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High-Speed Connectivity – LTE CAT4 speeds: 150Mbps DL, 50Mbps UL.
Global Compatibility – Supports LTE-TDD, LTE-FDD, WCDMA, and GSM bands.
GNSS Positioning – GPS, GLONASS, and BeiDou (BD) satellite navigation.
Wide Arduino Support – Compatible with UNO, Mega, Leonardo, and more.
Multiple Protocols – TCP/IP, FTP/FTPS, HTTP/HTTPS, DNS, and Multi-PDP.
Messaging & Voice – SMS in Text/PDU, telephone calling, and audio functions.
AT Command Control – Flexible control via serial AT commands.
LED Indicators – Power and network status LEDs for quick monitoring.
Robust Design – Operates from -40°C to 85°C for outdoor use.
Flexible Applications – IoT, logistics, tracking, remote monitoring, and learning.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

IoT Projects – Remote communication and cloud data transfer.
Mobile Tracking – GPS-enabled real-time vehicle and asset tracking.
Logistics & Fleet Management – Reliable tracking and monitoring solutions.
Remote Monitoring – Environmental, agricultural, and industrial IoT systems.
Outdoor Communication – High-rate 4G connectivity in field projects.
Learning & Development – Perfect for hobbyists experimenting with wireless communication.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Model	SIM7600G-H CAT4 4G (LTE) Shield
Operating Voltage	5V DC
Supported Bands	LTE-TDD: B34/B38/B39/B40/B41
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
Communication Rate	LTE CAT4 – DL: 150Mbps, UL: 50Mbps
GNSS Support	GPS, GLONASS, BeiDou (BD)
Control Method	AT Commands via Serial
Protocols Supported	TCP/IP, FTP/FTPS, HTTP/HTTPS, DNS, Multi-PDP
SMS Support	Text, PDU, MT, MO, CB
Indicators	Power LED, Network Status LED
Operating Temperature	-40°C to +85°C
Dimensions	69 × 54 mm
Shipment Weight	0.045 kg
Shipment Dimensions	9 × 7 × 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

Package Includes:

1 x SIM7600G-H CAT4 4G (LTE) Shield for Arduino
