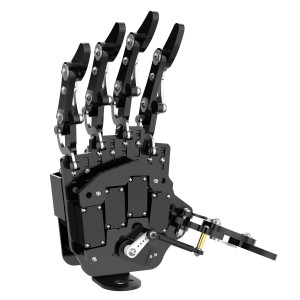

uHand Hiwonder Robotic Bionic Hand Left & Right Pair Individually Moving Fingers

Product Description

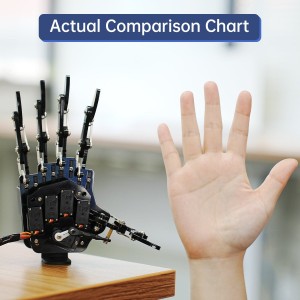

The uHand robotic hands (left and right pair) are 1:1 scale bionic mechanical hands designed for robotics enthusiasts, educators, and developers. Each finger can move independently thanks to high-quality LFD-01 anti-blocking micro servos, ensuring smooth and reliable actuation. Built with a combination of acrylic and aluminum alloy brackets, the uHand is lightweight yet durable, making it ideal for DIY robot projects, research, or secondary development.

With multiple mounting holes, tie-rod structure design, and support for expansion, the uHand offers flexibility for integration into humanoid robots, manipulators, or experimental robotic platforms.

Key Features

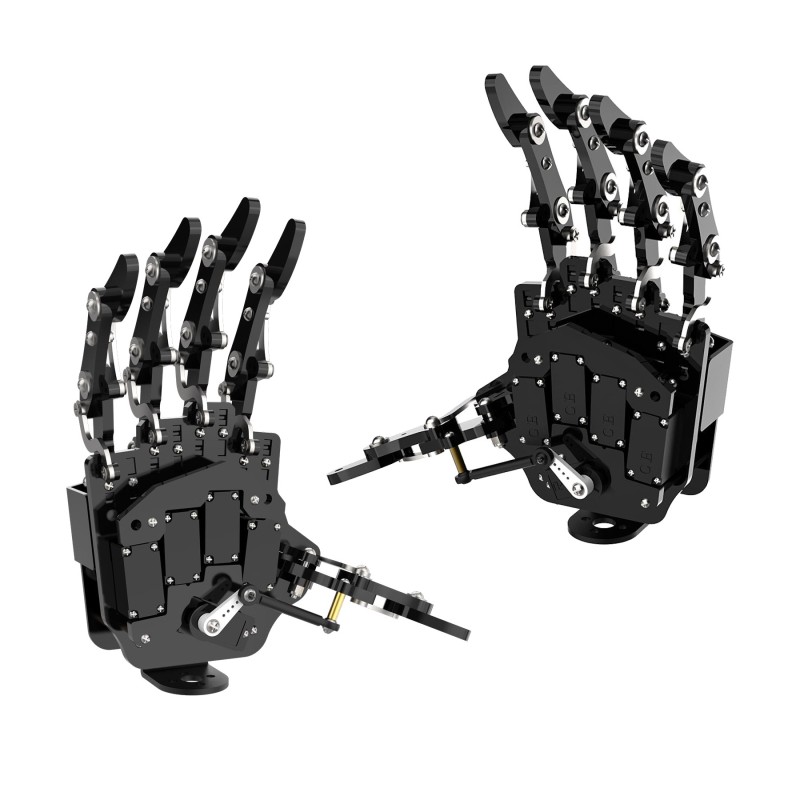

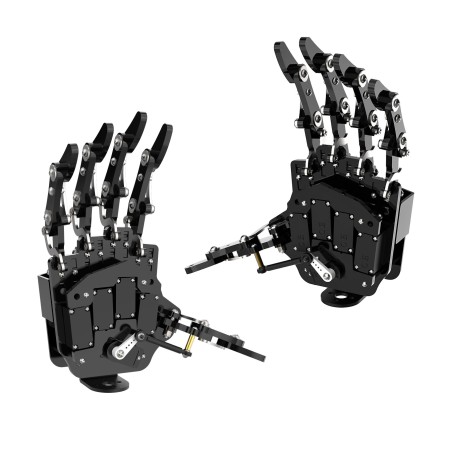

• Full Left & Right Hand Set – Includes both robotic hands for complete applications.

• Individually Moving Fingers – Each finger controlled separately using LFD-01 anti-blocking servos.

• Durable Build – Acrylic and aluminum alloy bracket ensures lightweight yet robust performance.

• Tie-Rod Structure – Enhances joint angular velocity and expands range of motion.

• DIY Friendly – Multiple mounting holes allow easy secondary development and expansion.

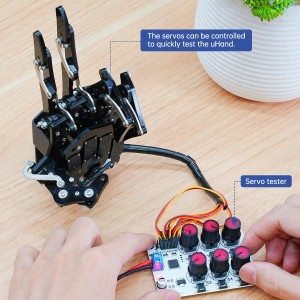

• Servo Tester Compatible – Hands can be tested and controlled directly via servo testers or microcontrollers.

Specifications (Per Hand)

• Product Size: 165 × 90 mm (6.5 × 3.54 in)

• Weight: 191 g (0.42 lb)

• Material: Acrylic + Aluminum Alloy

• Drive: Anti-block LFD-01M 9g Micro Servos

• Application: Robotics DIY, research, secondary development

Servo (LFD-01M) Specs

• Operating Voltage: 4.8V–6V

• Torque: 1.5 kg·cm (4.8V), 1.8 kg·cm (6V)

• Speed: 0.12 sec/60° (4.8V), 0.10 sec/60° (6V)

• No-load Current: 50 mA

• Size: 22.3 × 12 × 23.2 mm

• Weight: 9 g

• Wire Length: 26 cm





  Specification

  Robot Hand Five Fingers

  • Product size: 6.5*3.54inch/165*90mm
  • Product weight: 0.42Lb/191g
  • Product material: Acrylic and aluminum alloy
  • Drive: Anti-block servos
  • Application Scenario: matched with different brackets, suitable for secondary development of robots



  About Servo:

  • Servo Model: LFD-01M Servo (9G Micro Servo)
  • Operating Voltage:4.8V-6V
  • Torque:1.5kg.cm(4.8v); 1.8kg.cm(6v)
  • Speed: 0.12sec/60° (4.8v); 0.10sec/60°(6V)
  • No-load Current: 50mA
  • Weight: 0.317oz / 9g
  • Size: 0.88*0.47*0.9inch / 22.3*12*23.2mm
  • Wire Length: 10.24in / 26cm

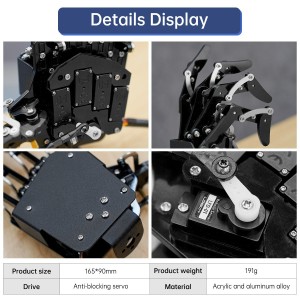

  Acrylic and Aluminum Alloy

  uHand is made of acrylic and aluminum alloy as the bracket, with a delicate structure.



  Mounting Holes

  uHand has multiple mounting holes, which is convenient for users to DIY expansion.



  Tie Rod Structure

  The mechanical hand is designed with a tie rod structure, which increases the joint angular velocity and expands the range of rotation.

Specifications (Both Hands Together)

• Total Size: ~330 × 90 mm (side by side)

• Combined Weight with Servos: ~382 g

• Combined Weight without Servos: ~280 g

• Opening & Closing Span (per hand): 193.5 mm

Applications

• DIY robotics projects

• Humanoid robots and manipulators

• Research and academic projects

• Gesture recognition and robotic demonstrations

• Secondary development and prototyping

Package Includes

• 1 × Left-Hand Robotic Hand (with servos)

• 1 × Right-Hand Robotic Hand (with servos)

Why Choose uHand?

With realistic finger articulation, durable build, and developer-friendly expansion, the uHand Left & Right robotic hand set offers the perfect solution for building advanced robotics projects, educational tools, or creative DIY robots.
