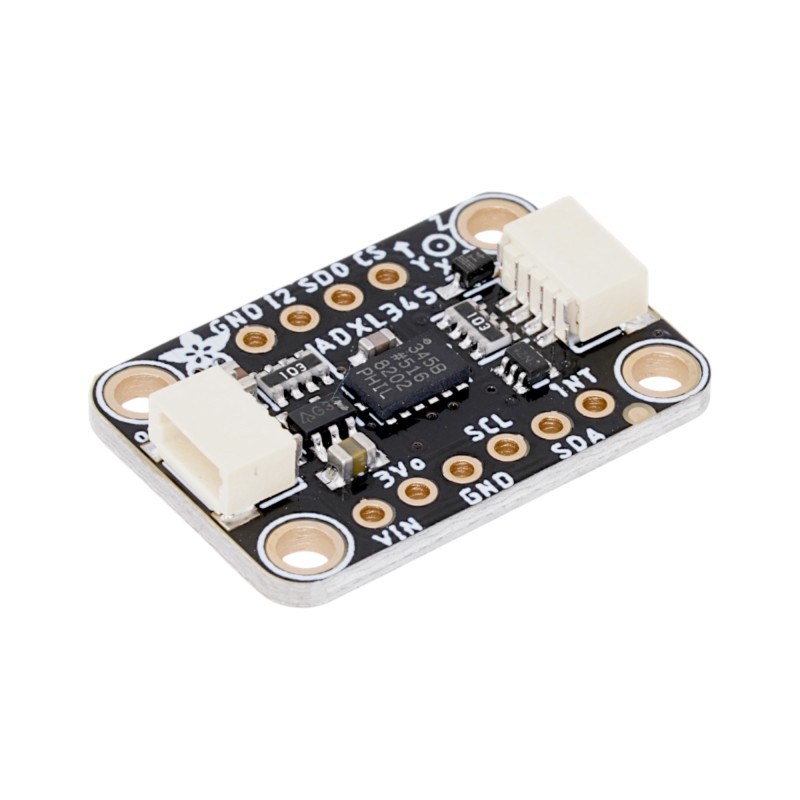

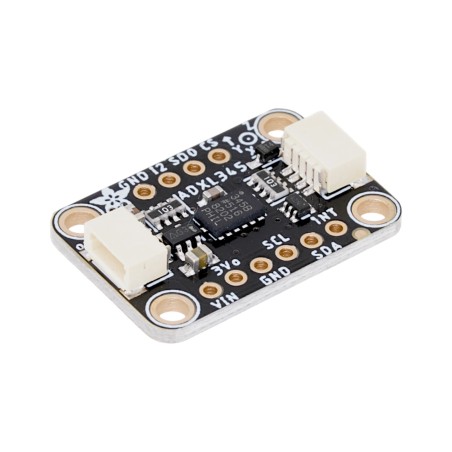

The ADXL345 Triple Axis Accelerometer Module is a high quality digital motion sensor capable of measuring acceleration in three directions X, Y, and Z. Based on the well known ADXL345 chip from Analog Devices, this module supports both I2C and SPI communication and is designed for easy integration with modern microcontrollers and single board computers.
The breakout board includes an onboard 3.3V voltage regulator and logic level shifting, allowing safe operation with both 3.3V and 5V systems. With the integrated STEMMA QT Qwiic connectors, the module supports plug and play, solder free connections for fast prototyping.
This is a generic, no brand module and is fully compatible with Arduino, Raspberry Pi, ESP32, ESP8266, STM32, and other I2C or SPI capable platforms.
Key Features
Triple axis acceleration sensing X Y Z
Selectable measurement ranges plus minus 2g, 4g, 8g, and 16g
Digital output via I2C or SPI interface
Onboard 3.3V regulator and logic level shifting
Compatible with both 3.3V and 5V systems
STEMMA QT Qwiic connector for solder free wiring
High resolution and stable performance
Compact breakout board with mounting holes
Technical Specifications
| Parameter | Specification |
|---|
| Sensor Chip | ADXL345 |
| Measurement Axes | X Y Z |
| Acceleration Ranges | plus minus 2g, 4g, 8g, 16g |
| Communication Interface | I2C or SPI |
| I2C Address | 0x53 |
| Operating Voltage | 3.3V to 5V |
| Logic Level | 3.3V and 5V compatible |
| Output Type | Digital |
| Mounting Holes | 4 holes |
| Connector Type | STEMMA QT Qwiic JST SH |
How to Use
Connect the module using a STEMMA QT Qwiic cable or via header pins.
Supply power from 3.3V or 5V depending on your system.
Select I2C or SPI mode based on wiring.
Read acceleration data from X Y Z registers using available libraries.
The sensor range can be configured in software depending on the motion sensitivity required.
Applications
Motion and tilt detection
Robotics and drones
Wearable devices
Step counting and activity tracking
Orientation sensing
Vibration and impact detection
Educational and DIY projects
Package Includes
Why Choose This Module
This ADXL345 accelerometer module offers excellent accuracy, flexible measurement ranges, and simple digital interfacing. With STEMMA QT Qwiic compatibility and onboard regulation, it is ideal for both beginners and advanced users looking for reliable motion sensing in a compact form.
Add precise motion detection to your next project with this easy to use ADXL345 accelerometer module.
