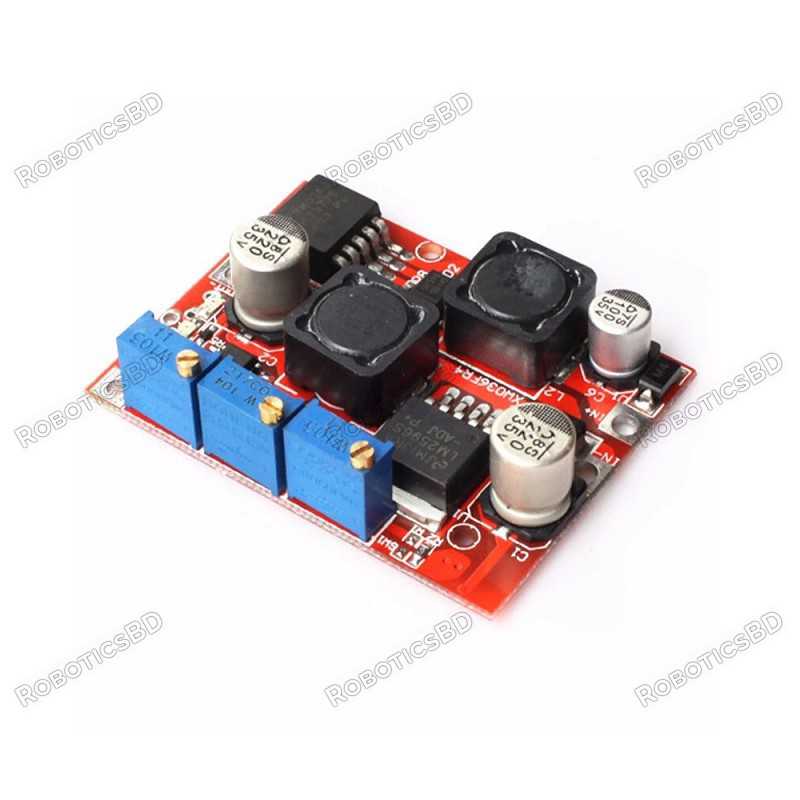

Solar/Wind energy Charging CC/CV Power Supply Module

RBD-2370

  1. Module Properties: non-isolated Buck-Boost constant current, constant voltage module (CC-CV) charging module
  2. Battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.
  3. Solar Panel, Wind generator voltage regulator, Car Power Supply
BDT 490.00
BDT 490.00 BDT 490.00 BDT 490.00 BDT 490.00
Tax included Tax excluded Tax included Tax excluded
BDT 490.00 Tax excluded
BDT 490.00 Tax included
BDT 0.00 Tax
BDT 490.00 Tax excluded
BDT 0.00 Tax
BDT 490.00 Tax included
Quantity
27 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

It is an LM2596-based Solar Energy Wind Belt Charging Constant Current Constant Voltage Power Supply Module with Applications of DIY Power Adapter/Charger. Which can be used to charge batteries by using wind/solar energy the module has an onboard constant current power supply

Note:

  1. Potentiometer adjustment direction: clockwise (increase), counterclockwise (decrease)
  2. Indicator: constant current Indicator Red, Charging indicator Red, Full charge indicator Blue.
  3. Output short circuit protection: Yes, constant current (constant current setting values)
  4. Input Reverse Polarity Protection: None (Please Series diode at the input port.)
  5. Connection: Welding, can be directly soldered to a PCB.

Note: This Product is available in two different variants of IC ( LM 2577s and XL6019E1 ) with the same working, we will ship it randomly.

Features:

  1. Module Properties: non-isolated Buck-Boost constant current, constant voltage module (CC-CV) charging module
  2. High-power constant current LED driver.
  3. Battery charger (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charger, solar panels, wind generators.
  4. Solar Panel, Wind generator voltage regulator, Car Power Supply.
  5. Output Current: Rate 3A, Max 4A ( If more than 15W, please install the heat sink, this item does not include a heatsink)
  6. Constant current range: 0~2A (adjustable)
  7. if using Solar as a power supply, please ensure the input power is 1.1 times the output power.

Package Includes:

1 x Solar/Wind energy Charging CC/CV Power Supply Module

Product Details
RBD-2370
27 Items

Specific References

EAN13
2370
