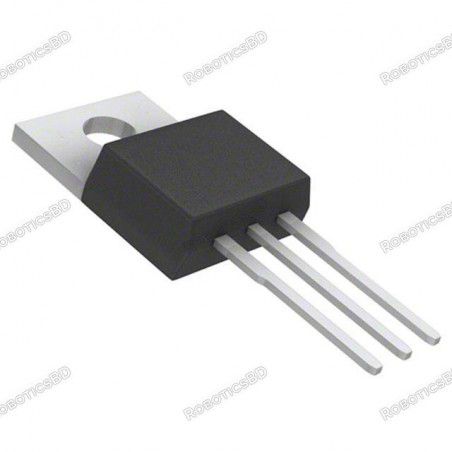

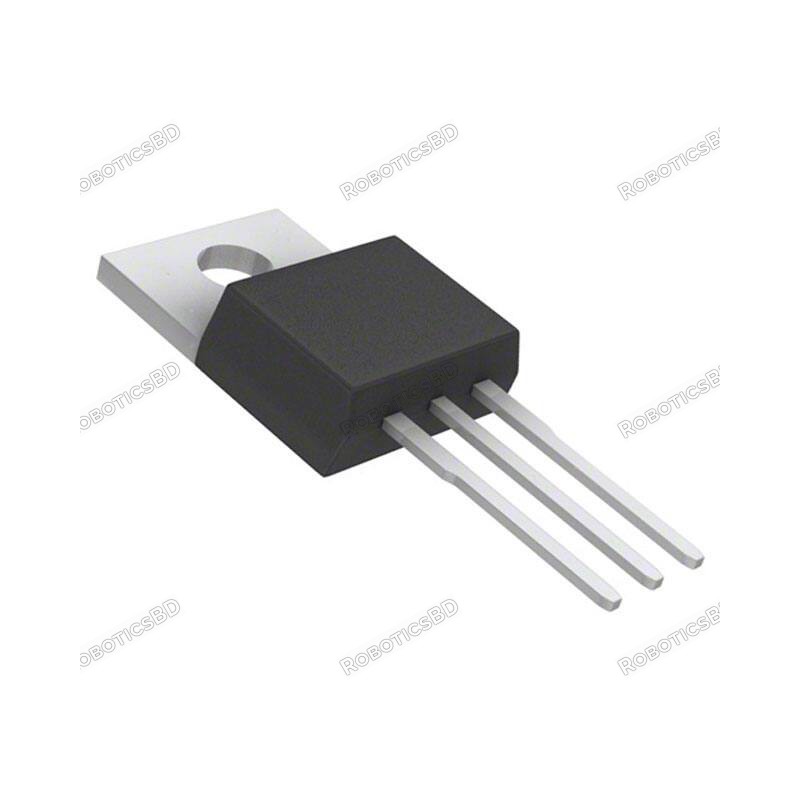

P-channel Power MOSFET TO-220 Package 25A / 60V FQP27P06

RBD-2755

When you need to switch a lot of power, P channel MOSFETs are best for the job. These P-FETs can switch over 60V and 25A (with proper heat-sinking) and are TO-220 package so they fit nicely into any breadboard or perfboard. Heat sinking is easy with TO-220s, but because of the very low Rds(on) of down to 70 mOhms (depending on the Vgs - check the datasheet) you can get away with no heatsinking for pretty high loads! The threshold voltage is up to 5V for 20A of current, so you can control it directly from a microcontroller running on 5V logic.

BDT 120.00
BDT 120.00 BDT 120.00 BDT 120.00 BDT 120.00
Tax included Tax excluded Tax included Tax excluded
BDT 120.00 Tax excluded
BDT 120.00 Tax included
BDT 0.00 Tax
BDT 120.00 Tax excluded
BDT 0.00 Tax
BDT 120.00 Tax included
Quantity
50 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

When you need to switch a lot of power, P channel MOSFETs are best for the job. These P-FETs can switch over 60V and 25A (with proper heat-sinking) and are TO-220 package so they fit nicely into any breadboard or perfboard. Heat sinking is easy with TO-220s, but because of the very low Rds(on) of down to 70 mOhms (depending on the Vgs - check the datasheet) you can get away with no heatsinking for pretty high loads! The threshold voltage is up to 5V for 20A of current, so you can control it directly from a microcontroller running on 5V logic.

Check out the datasheet which includes pinout information and a lot more details

The TO-220 package can dissipate up to 2 Watts without a heat sink (at room temperature). Because it has an Rds of <100 milliohms at 5V-12V logic, that means that you can switch about 10 Amperes without a heat sink - more if you use PWM. For more detailed calculations, we suggest this site which has always worked nicely!

Technical Details

Datasheet which includes pinout

  • Drain-Source Breakdown Voltage: -60 V
  • Gate-Source Breakdown Voltage: +/- 25 V
  • Continuous Drain Current: 27 A
  • Minimum / Maximum Operating Temperature: -55ºC / 175ºC

Dimensions

  • Height (incl. pins): 28mm / 1.1"
  • Width: 10mm / 0.4"
  • Length of Pins: 13.5mm / 0.5"
  • Weight: 2g
Product Details
RBD-2755
50 Items

Specific References

EAN13
2755
