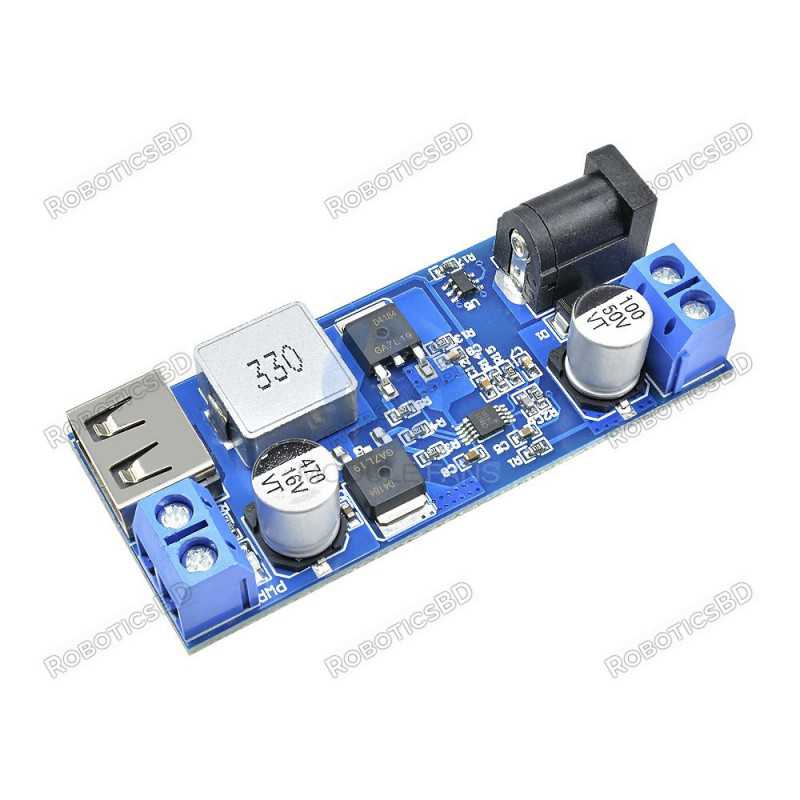

LM2596S DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Charging Module Robotics Bangladesh
  • LM2596S DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Charging Module Robotics Bangladesh
  • LM2596S DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Charging Module Robotics Bangladesh

LM2596S DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Charging Module

RBD-2222

  • DC-DC buck converter module
  • Converts 24V/12V to 5V
  • 5A output current
  • High efficiency synchronous rectification
  • With USB port and terminal blocks
  • Easy to use
BDT 380.00
BDT 380.00 BDT 380.00 BDT 380.00 BDT 380.00
Tax included Tax excluded Tax included Tax excluded
BDT 380.00 Tax excluded
BDT 380.00 Tax included
BDT 0.00 Tax
BDT 380.00 Tax excluded
BDT 0.00 Tax
BDT 380.00 Tax included
Quantity
In-Stock
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

The LM2596S DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Charging Module is a versatile tool that can be used to step down DC voltage from 24V/12V to 5V. The module features high efficiency synchronous rectification, which ensures high conversion efficiency. The module also has a USB port with fast-charge identification chip, making it ideal for charging mobile phones and other devices. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. DC-DC buck converter module
  2. Converts 24V/12V input voltage to 5V output voltage
  3. Maximum output current of 5A
  4. High efficiency synchronous rectification
  5. With DC plug and terminals, easy to use
  6. With USB port, with fast-charge identification chip compatible with Android phones.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. Step down DC voltage from 24V/12V to 5V
  2. Charge mobile phones and other devices
  3. Power other devices that require a 5V input voltage

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Input voltage DC 9V - 36V
Output voltage 5.2V / 5A / 25W
Output capability 9 ~ 24V Input: Output 5.2V / 6A / 30W
Output capability 2 24 ~ 32V Input: Output 5.2V / 5A / 25W
Output capability 3 32 ~ 36V Input: Output 5.2V / 3.5A / 18W
Size 63 x 27 x 10mm (L * W * H)
Weight 22g
Shipment Weight 0.033 kg
Shipment Dimensions 12 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Additional Information:

  1. Do not exceed the maximum input voltage or current.
  2. Do not operate the module in temperatures outside of the specified range.
  3. Do not expose the module to water or other liquids.
  4. The LM2596S DC-DC 24V/12V To 5V 5A Step Down Power Supply Buck Converter Charging Module is a great tool for a variety of applications.
  5. The module is easy to use and can be connected to a variety of devices.
  6. The module is a valuable tool for stepping down DC voltage and charging mobile phones and other devices.

Package Includes:

1 x LM2596S DC-DC 24V/12V To 5V 5A Step Down Power Supply

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2222
5 Items

Specific References

EAN13
2222
