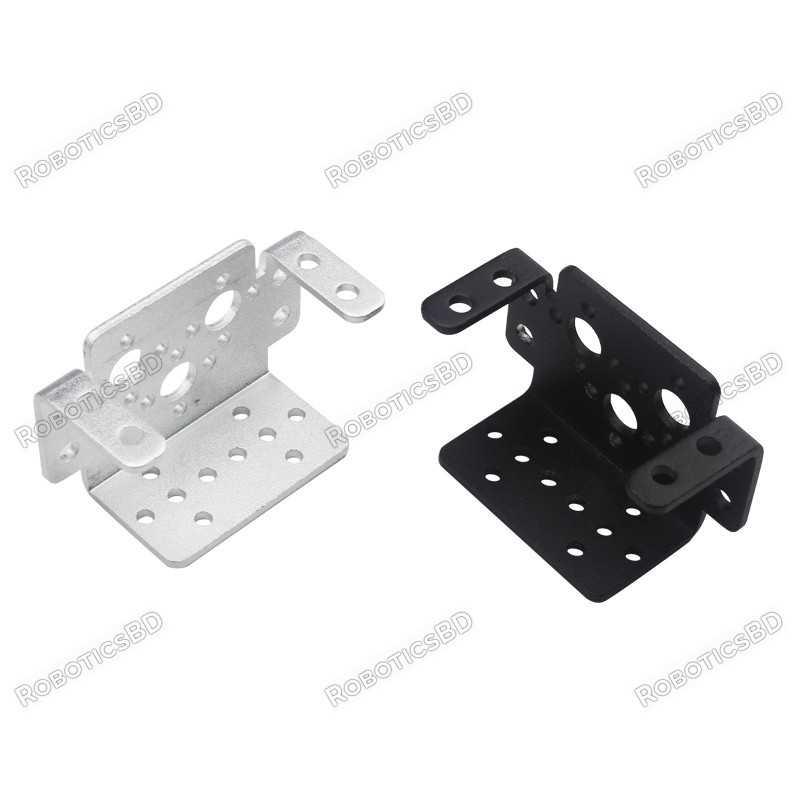

Single Axis Servo Bracket
  • Single Axis Servo Bracket

Single Axis Servo Bracket

0828

  • Supported Motors: 10kg-cm servos (such as MG995, MG996)
  • This product is made of high-quality materials and is durable.
  • Various sensors can be installed to complete a variety of novel interactive works through the servo controller.
  • It is convenient to install the camera, which can realize image monitoring and image recognition and tracking.

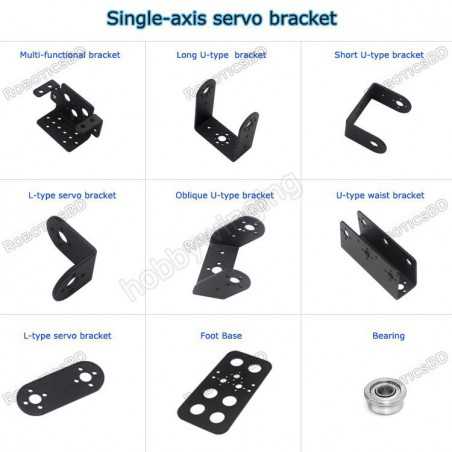

Choose your desire Servo Bracket from below:

Servo Bracket
BDT 220.00
BDT 220.00 BDT 220.00 BDT 220.00 BDT 220.00
Tax included Tax excluded Tax included Tax excluded
BDT 220.00 Tax excluded
BDT 220.00 Tax included
BDT 0.00 Tax
BDT 220.00 Tax excluded
BDT 0.00 Tax
BDT 220.00 Tax included
Quantity
In-Stock
5 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

Choose your desire Servo Bracket:

Servo Mount Brackets For MG995 MG996 Servo Motor

A bracket is an architectural element. It is a structural or decorative member. This motor mounting bracket provides easy and secure mounting for motors. Motors are mounted within HVAC units and other systems by motor mounting brackets. These brackets attach to (or within) the unit and hold the motor. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. FPV Camera systems
  2. Object tracking Systems
  3. Security Camera application
  4. Ultrasonic Distance measurement and Ultrasonic Radars
  5. Robotic Arm and Robotic Leg applications. RoboticsBD

Possible Assembly 1:

17DOF Biped Robot needs

- 16 x Multi-functional servo bracket

- 7 x Short U-type servo bracket

- 4 x Long U-type servo bracket

- 4 x Oblique U-type servo bracket

- 4 x one-type servo bracket

- 4 x L-type servo bracket

- 1 x U-type robot waist bracket

- 2 x Foot Base

- 14 x Bearing

- 17 x Metal Servo Horn

Screws and screw caps

TIM20170616230418



Possible Assembly 2:

6 DOF Robot Clamp needs. RoboticsBD

- 5 x Multi-functional servo bracket

- 4 x Long U-type servo bracket

- 1 x L-type servo bracket

- 5 x U-type robot waist bracket

- 4 x Miniature Ball Radial Bearing

- 1 x Aluminum Clamp Claw

- 6 x Metal Servo Horn

many Screws and screw caps


TIM20170616232512


Possible Assembly 3:

9DOF Biped Robot needs

- 8 x Multi-functional servo bracket

- 5 x Short U-type servo bracket

- 2 x Oblique U-type servo bracket

- 4 x L-type servo bracket

- 1 x U-type robot waist bracket

- 2 x Foot Base

- 4 x Miniature Ball Radial Bearing

- 9 x Metal Servo Horn

many Screws and screw caps, RoboticsBD


TIM20170616232939

Possible Assembly 4:

15DOF Biped Robot needs

- 12 x Multi-functional servo bracket

- 5 x Short U-type servo bracket

- 4 x Long U-type servo bracket

- 2 x Oblique U-type servo bracket

- 2 x Aluminum Clamp Claw

- 4 x L-type servo bracket

- 1 x U-type robot waist bracket

- 2 x Foot Base

- 10 x Miniature Ball Radial Bearing

- 15 x Metal Servo Horn

many Screws and screw caps

TIM20170616232955

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Supported Motors 10kg-cm servos (MG996R, MG995)
Material Mild Steel
Weight (gm) 51.2
Shipment Weight 0.05 kg
Shipment Dimensions 10 × 10 × 6 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Related Products:

Choose related product from below:

Package Includes:

1 x (Selected) Servo Bracket.
