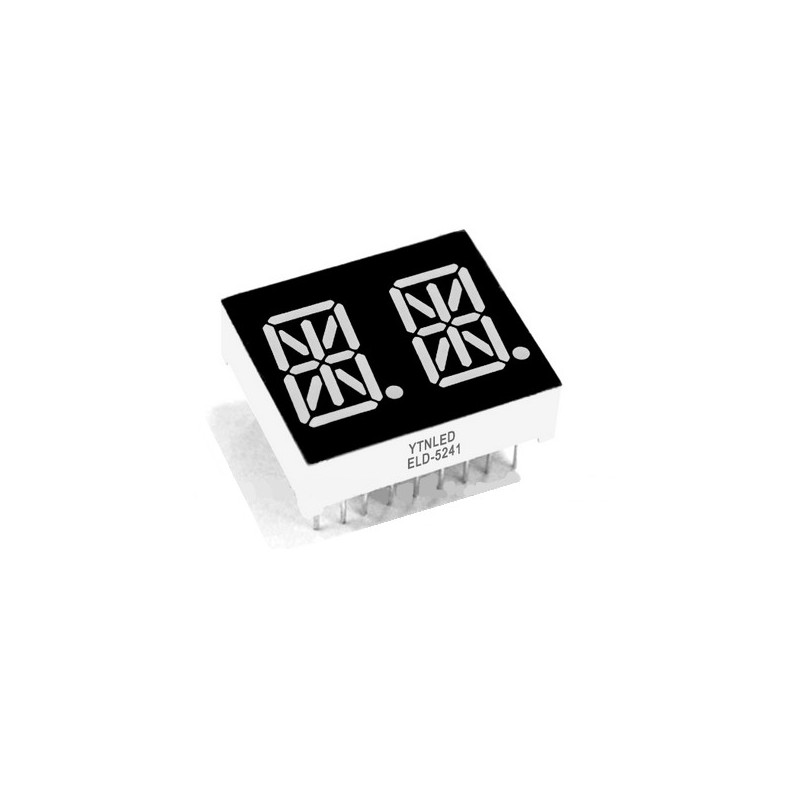

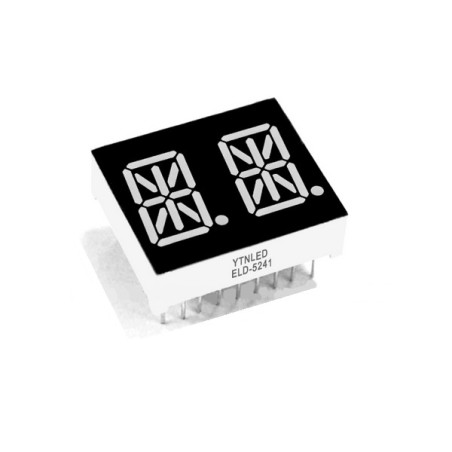

5241AS Red 0.54" Common Cathode Dual Digit Alphanumeric LED Display

Reference RBD-3502

5241AS Red 0.54" LED Display with dual 17-segment alphanumeric digits
Bright red illumination for high visibility and clear readability
Common cathode configuration for simplified microcontroller interfacing
0.54-inch digit height ideal for compact embedded designs
Low forward voltage (min. 1.8V DC) for energy-efficient operation
Perfect for clocks, counters, meters, and control panels

Description
Product Details

Description

The 5241AS Red 0.54" LED Display is a compact and high-visibility dual-digit alphanumeric module designed for embedded and industrial display applications. Featuring two 17-segment digits, it can represent numbers, letters, and special characters with excellent clarity. Because it uses a common cathode configuration, integration with microcontrollers such as Arduino or other development boards becomes straightforward and efficient. Moreover, its bright red illumination ensures clear readability in both indoor and panel-mounted environments. With a minimum forward voltage of just 1.8V DC, the display operates efficiently while maintaining strong brightness output. Its compact 25.2mm × 21.1mm footprint makes it ideal for space-constrained projects. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Dual 17-Segment Structure – Displays numbers and alphabetic characters with enhanced flexibility.
Bright Red Output – Ensures clear visibility in control panels and embedded devices.
Common Cathode Design – Simplifies wiring and programming with standard microcontrollers.
Compact Form Factor – Fits easily into tight PCB layouts and front-panel designs.
Low Power Requirement – Operates with a minimum forward voltage of 1.8V DC.
Wide Application Compatibility – Suitable for both hobbyist and industrial electronics systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Digital clocks, countdown timers, and stopwatches.
Alphanumeric counters and production displays.
Measuring instruments and voltage/current meters.
Consumer electronics display modules.
Industrial control panel indicators.
Arduino, STM32, and embedded development projects.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Name	5241AS Red 0.54" Dual Digit LED Display
Model	5241AS / ELD-5241AS
Display Type	Dual Digit Alphanumeric
Display Color	Red
Digit Height	0.54 inch
Segments per Digit	17 Segments
Common Pin Type	Common Cathode
Minimum Forward Voltage	1.8V DC
Dimensions	25.2mm × 21.1mm × 8.5mm
Mounting Type	Through-Hole
Shipment Weight	0.05 kg
Shipment Dimensions	3 × 3 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 5241AS Red 0.54" Common Cathode Dual Digit Alphanumeric LED Display
