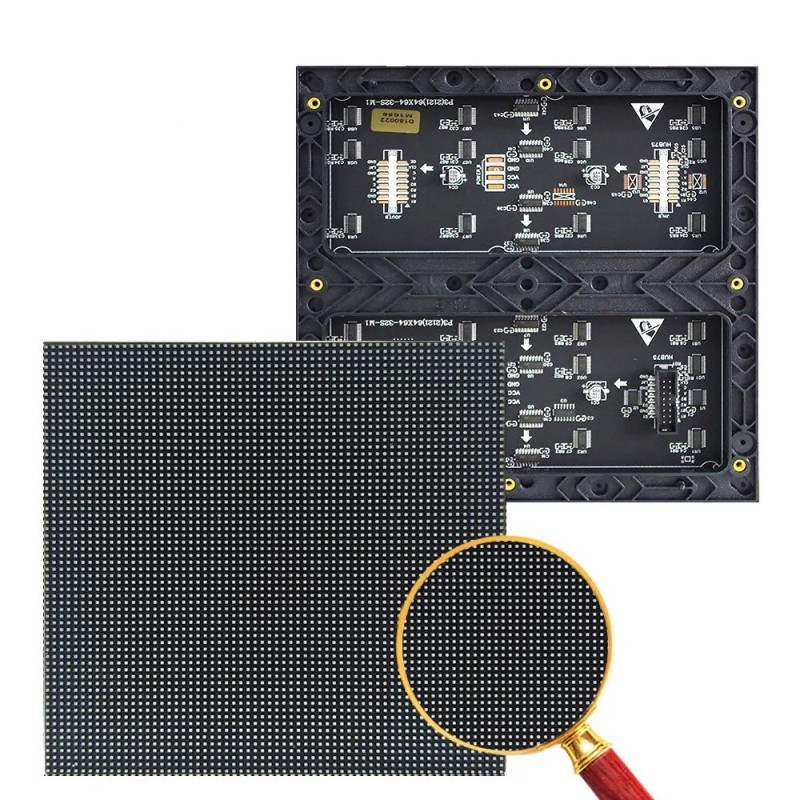

LED Display Panel 64x64 P3 RGB

Reference RBD-3512

LED Display Panel 64x64 P3 RGB with 4096 full-color RGB LEDs
3mm pixel pitch for sharp text and smooth animations
192mm × 192mm compact panel with HUB75 interface
Supports Raspberry Pi, Arduino, and other controllers
Brightness up to 1500cd/m² with 14-bit grayscale per color
Expandable design for cascading multiple panels

Description
Product Details

Description

The LED Display Panel 64x64 P3 RGB is a high-resolution full-color LED matrix designed for dynamic visual projects and professional display applications. With 4096 individual RGB LEDs and a tight 3mm pixel pitch, this panel delivers crisp text, vivid graphics, and smooth animation effects. Moreover, the HUB75 input/output headers allow easy cascading of multiple panels for larger display systems. It operates on DC 5V and supports both synchronous and asynchronous control methods, making it suitable for Raspberry Pi, Arduino, and other compatible controllers. Because it offers up to 1500cd/m² brightness and 14-bit grayscale per color, the panel ensures vibrant color reproduction and consistent visual performance. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

High Pixel Density (64×64) – Delivers detailed visuals with 4096 RGB LEDs.
P3 Fine Pitch Design – 3mm pixel spacing ensures sharp rendering even at close viewing distances.
Wide Color Range – Supports 16.7 million colors with 14-bit grayscale per channel.
Expandable HUB75 Interface – Daisy-chain multiple panels for large-scale displays.
High Brightness Output – Up to 1500cd/m² for clear indoor visibility.
Wide Viewing Angle – 120° horizontal and 90° vertical coverage.
Flexible Control Modes – Supports synchronization and asynchronous control systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

DIY desktop and wall-mounted LED screens.
Digital signage and advertising displays.
Scrolling message boards and marquee systems.
Interactive art and creative lighting installations.
Educational programming and electronics projects.
Smart home visual notification systems.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specifications
Product Name	LED Display Panel 64x64 P3 RGB
Model	P3 RGB
Module Resolution	64 × 64 pixels
Pixel Pitch	3mm
Module Size	192mm × 192mm
Pixel Density	111,111 dots/m²
LED Type	SMD2121
Pixel Configuration	1R1G1B
Brightness	1500cd/m²
Gray Scale	14-bit per color
Viewing Angle	120° (H), 90° (V)
Driving Method	1/32 Scan
Refresh Rate	≥600Hz
Operating Voltage	DC 5V
Maximum Power Consumption	20W
Waterproof Rating	IP54
MTBF	>8000 hours
Shipment Weight	0.005 kg
Shipment Dimensions	12 × 8 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x LED Display Panel 64x64 P3 RGB
