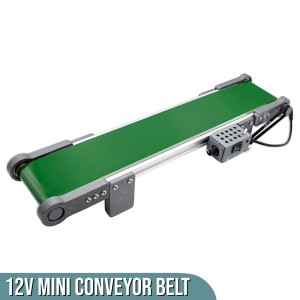

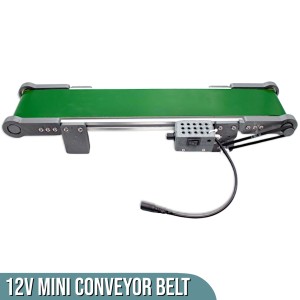

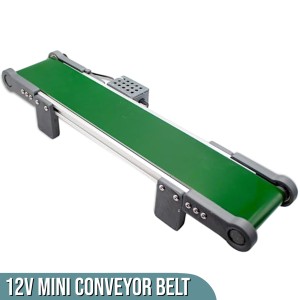

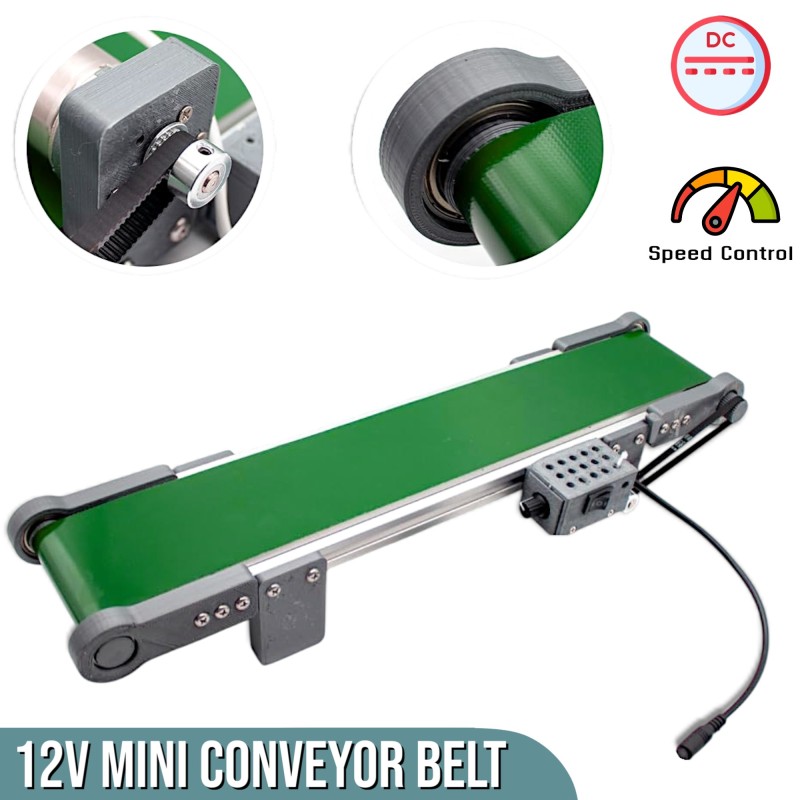

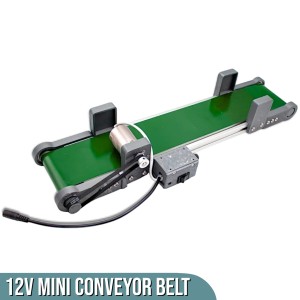

The DC 12V Electric Desktop Conveyor Belt is a versatile and compact material transport solution designed for educational labs, prototyping, and light-duty industrial applications. Featuring an adjustable motor speed of 0–116 RPM and a belt speed of 1.8–7.6 cm/s, this conveyor supports forward and reverse motion, allowing dynamic flow control in simulated production lines or testing setups.
The build includes a durable PVC belt, CNC-machined aluminum alloy drive components, and a 2020 European standard aluminum base for structural stability. With an 80mm belt width and load capacity of up to 1.2 kg, it's suitable for demonstrating material flow, friction experiments, and automation prototyping. This desktop conveyor operates on a DC 12V motor and includes a universal AC 100–240V power input adapter for ease of use. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
Adjustable Speed Motor – Offers 0–116 RPM with adjustable control
Forward & Reverse Support – Enables bidirectional movement for flexible applications
Sturdy Construction – CNC-machined aluminum and high-density 3D printed parts
Versatile Belt Speed – Runs between 1.8 and 7.6 cm/s for diverse testing scenarios
Wide Compatibility – Accepts AC 100–240V input, converts to 12V DC motor voltage
Compact Desktop Size – Ideal for benchtop experimentation and simulation
Load Capacity of 1.2kg – Handles small components for light assembly or display
Multiple Sizes Available – Length variants (49/69/99 cm) to suit various needs
Educational & Industrial Use – Great for friction, mechanical testing, or demo setups
Simple Setup – Plug-and-play design suitable for beginners and professionals alike
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
Educational Demonstrations – Visualize conveyor mechanics and friction experiments
DIY Automation Projects – Simulate light-duty production lines at small scale
Electronics Assembly Line – Transport components in prototyping environments
Packaging and Sorting Demos – Model packaging flow in miniature setups
Robotics Integration – Useful in pick-and-place or sorting robot simulations
Display or Showcase Items – Rotate products at trade shows or exhibitions
Lab Experimentation – Ideal for classroom and research-based mechanical projects
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specifications |
| Input Voltage | AC 100–240V |
| Motor Type | - |
| Motor Voltage | DC 12V |
| Motor Speed | 0–116 RPM (Adjustable) |
| Belt Speed | 1.8–7.6 cm/s |
| Belt Width | 80 mm |
| Maximum Load | Approx. 1.2 kg |
| Drive Shaft Material | CNC-machined Aluminum Alloy |
| Driven Shaft Material | CNC-machined PVC |
| Base Frame Material | 2020 European Standard Aluminum Bar |
| Support Material | High-Density 3D Printing |
| Belt Material | PVC |
| Forward/Reverse | Supported |
| Product Sizes Available | 49 cm effective belt length |
| Overall Dimensions | 500 × 100 × 70 mm |
| Shipment Weight | 2.600 kg |
| Shipment Dimensions | 65 × 18 × 15 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Package Includes:
1 x DC 12V Electric Desktop Conveyor Belt
