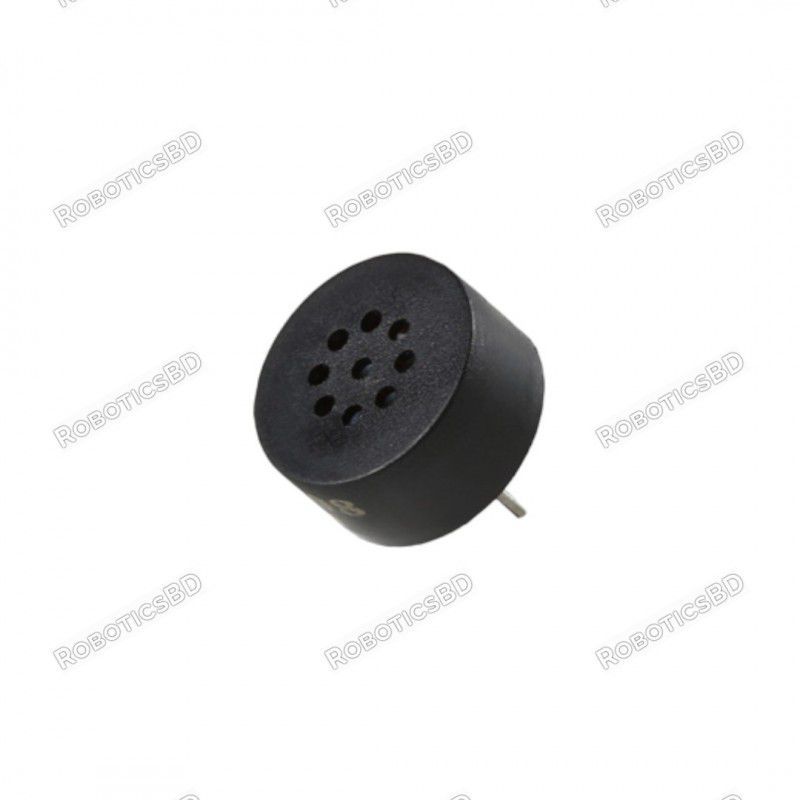

Through-Hole Speaker 15mm diameter - 2kHz range

RBD-2691

  • Compact 15mm speaker for integrating sound into space-constrained projects.
  • 2kHz frequency range suitable for basic audio applications.
  • Through-hole mounting for easy integration with circuit boards.
  • Handles up to 0.5W of power for moderate sound output.
BDT 60.00
BDT 60.00 BDT 60.00 BDT 60.00 BDT 60.00
Tax included Tax excluded Tax included Tax excluded
BDT 60.00 Tax excluded
BDT 60.00 Tax included
BDT 0.00 Tax
BDT 60.00 Tax excluded
BDT 0.00 Tax
BDT 60.00 Tax included
Quantity
In-Stock
41 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This 15mm through-hole speaker is a great solution for adding sound to your DIY electronics projects where space is limited.  The small size makes it ideal for applications like user interfaces, simple sound effects, or basic music playback within the 2kHz range.  This speaker features through-hole mounting for convenient integration into your PCBs.  With a 0.5W power handling capacity, it delivers adequate sound output for close-range listening. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Compact Size (15mm): Fits easily into space-constrained projects.
  2. 2kHz Frequency Range: Suitable for basic audio applications.
  3. Through-Hole Mounting: Simplifies integration with PCBs.
  4. 0.5W Power Handling: Provides moderate sound output.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. User Interface Beeps: Generate audible feedback for button presses or notifications.
  2. Simple Sound Effects: Create basic sound effects for alarms, games, or other applications.
  3. DIY Music Projects: Integrate into custom music players with limited frequency range needs.
  4. Educational Electronics Projects: Experiment with sound generation and speaker integration.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Diameter 15mm
Depth 7.5mm
Input Power Min. 0.3W, Max. 0.5W
Impedance (3kHz, 1V) Min. 6.8Ω, Typ. 8Ω, Max. 9.2Ω
Resonant Frequency (1V) Min. 1360Hz, Typ. 1700Hz, Max. 2040Hz
Response Range Up to 20,000Hz (limited audibility above 2kHz)
Distortion (3kHz, 0.3W) 10%
Magnet Size Ø6.5 x 1.5 mm
Operating Temperature -20°C to 55°C
Weight 2.0g
Material PBT + 20% Glass Fiber
Washable Yes
RoHS Compliant Yes
Hand Soldering Specs 350°C ± 5°C for 3 seconds
Shipment Weight 0.005 kg
Shipment Dimensions 5 x 5 x 4 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Documentation:

  1. The 2kHz frequency range limits the speaker's ability to reproduce a full range of audio.
  2. Consider using an amplifier circuit for driving the speaker with sufficient power.

Package Includes:

1 x Through-Hole Speaker 15mm diameter - 2kHz range
