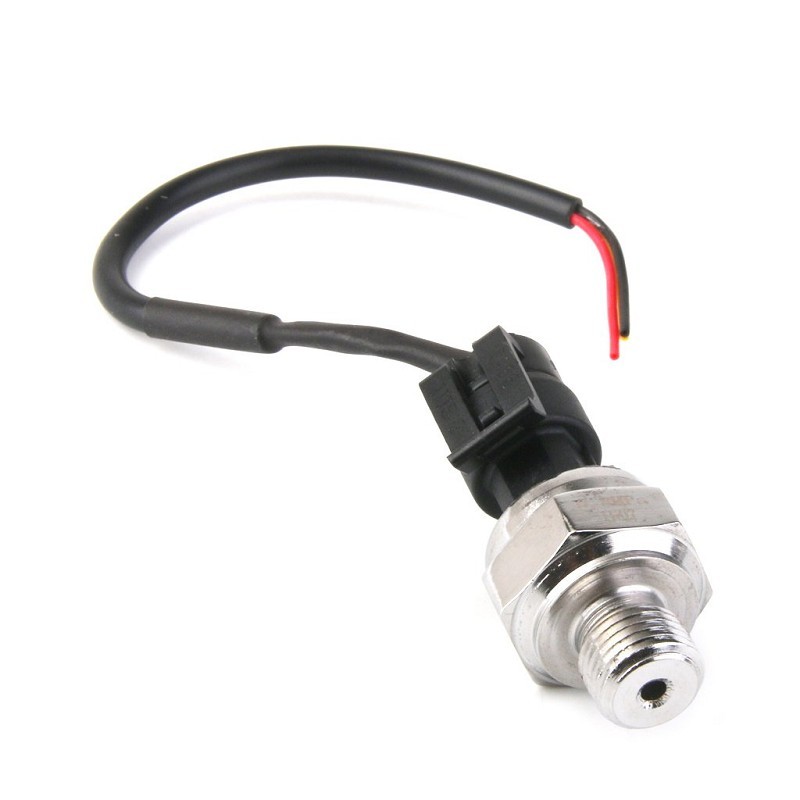

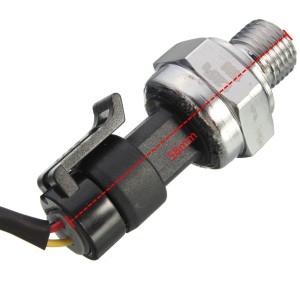

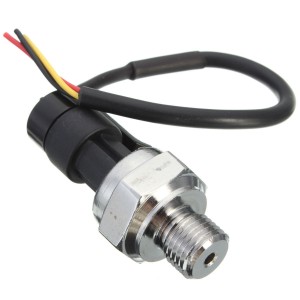

0.2MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor

Reference RBD-2967

0.2MPa stainless steel pressure transducer with G1/4" threaded interface
Designed for low-pressure measurement applications
High accuracy (±1.5%FS) with <2ms fast response time
Analog voltage output: 0.5–4.5VDC @ 5V input
Stainless steel IP65-rated body ensures durability and water resistance
Ideal for gas, oil, liquid, and industrial low-pressure systems

Description
Product Details

Description

The 0.2MPa G1/4" Stainless Steel Pressure Transducer Sensor is a durable and reliable sensor for low-pressure monitoring applications. Built with a stainless steel housing and IP65 protection, it withstands harsh environments while providing stable and precise measurements. Operating on 5V input with a 0.5–4.5V analog output, it is compatible with microcontrollers, PLCs, and automation systems. With its ±1.5%FS accuracy, rapid <2ms response time, and robust surge protection, this sensor is well-suited for use in oil tanks, gas lines, water systems, and industrial automation requiring low-pressure detection. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

Low-Pressure Range – Measures up to 0.2MPa for sensitive applications.
High Accuracy – ±1.5%FS with stable and reliable readings.
Fast Response Time – <2ms for real-time pressure monitoring.
Stainless Steel Housing – Provides long-lasting durability.
Analog Output (0.5–4.5V) – Compatible with controllers and PLCs.
Low Power Consumption – Less than 10mA working current.
Surge Voltage Protection – Prevents damage in unstable power environments.
IP65 Waterproof Rating – Safe for demanding industrial use.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

Oil & Gas Tanks – Monitoring low-pressure systems.
Water Systems – Detecting pressure in clean liquid pipelines.
Industrial Automation – For process control and system monitoring.
Robotics & IoT Projects – Low-pressure detection for smart systems.
Hydraulic & Pneumatic Systems – Suitable for clean, non-corrosive media.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

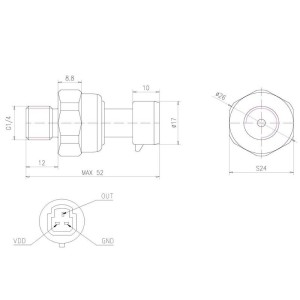

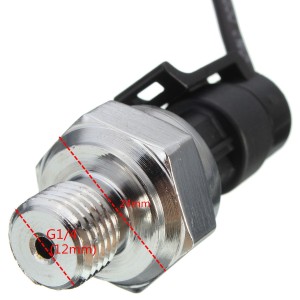

Interface Size	G1/4" (2-point thread)
Working Voltage	5V ±0.5VDC
Output Voltage	0.5–4.5VDC @ 5V
Working Current	<10mA
Working Pressure Range	0–1.2MPa
Maximum Applied Pressure	2.4MPa
Destruction Pressure	0.2MPa
Suitable Medium	Gas/liquid (clean, non-corrosive)
Accuracy	±1.5%FS
Response Time	<2.0ms
Protection Level	IP65
Working Temperature	-20°C to 105°C
Storage Temperature	-20°C to 105°C
Body Material	Stainless Steel
Shipment Weight	0.0507 kg
Shipment Dimensions	8 × 6 × 3 cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 0.2MPa G1/4" inch 5V Stainless Steel Pressure Transducer Sensor
