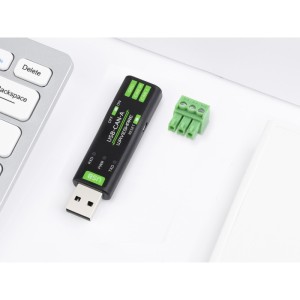

USB to CAN Adapter Model A – STM32 Chip Solution, Multi-System Compatible

Product Description

The Waveshare USB to CAN Adapter Model A is a powerful and reliable interface for connecting a computer to a CAN (Controller Area Network) bus. Based on the STM32F103 microcontroller, it ensures stable and efficient communication for data acquisition, monitoring, and transceiver control.

Supporting CAN2.0A (standard frame) and CAN2.0B (extended frame), this adapter is ideal for automotive diagnostics, industrial control, and embedded system development. With configurable CAN baud rates (5Kbps–1Mbps), multiple working modes, and cross-platform compatibility with Windows and Linux (including Raspberry Pi OS & Jetson Nano), it offers both flexibility and reliability.

More details: Waveshare Wiki – USB-CAN-A

USB to CAN Adapter Model A

STM32 Chip Solution, Multi-system Compatible, Multiple Working modes



Features at a glance

• Supports CAN2.0A (standard frame) and CAN2.0B (extended frame)
• CAN baud rate is configurable in the range of 5Kbps-1Mbps
• Supports 4 working modes: normal mode, loopback mode, silent mode, silent loopback mode
• Supports multiple CAN data sending modes: single frame, multiple frames, manually, regularly and cyclic sending
• Supports multiple CAN data receiving modes: can be configured to only receive data from a certain ID, or specify ID to automatically answer the configured data
• Data can be saved as TXT or Excel
• Supports CAN bus detection for status checking
• Sending/receiving CAN data with time scale, allows sequentially displaying
• Baud rate of USB virtual COM port is configurable in the range of 9600 ~ 2000000bps (2000000bps by default)
• Supports setting working parameters by configuration software or serial command, can be saved after power off
• Adopts STM32 chip solution, stable and reliable communication
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit
• Comes with master computer software for Windows system, easy to use
• Easy secondary development, just need to modify the sending and receiving commands

Version Upgrade

Primary Functions

Collects data from CAN bus to PC via USB for transceiver control, data analysis,
acquisition and monitoring of CAN bus network

CAN Baud Rate Configurable

CAN Baud Rate Is Configurable In The Range Of 5Kbps-1Mbps

Support Windows And Linux System

Support Windows XP/7/8/10/11 and Linux systems such as Raspberry Pi OS and Ubuntu under Jetson Nano, support secondary development

Support Multiple Working modes

Adopts STM32 Chip Solution

Adopts the original STM32F103 chip, stable and reliable communication

Interfaces Introduction

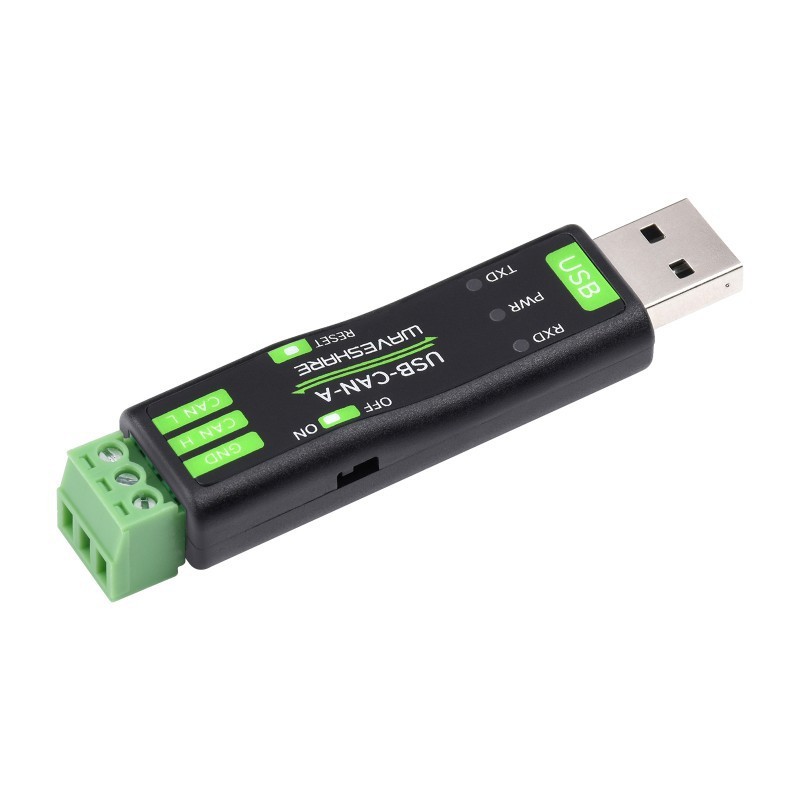

Product Show

Outline dimensions

Resources & Services

---

WIKI: www.waveshare.com/wiki/USB-CAN-A

Key Features

• Protocol Support: CAN2.0A (standard frame) & CAN2.0B (extended frame)

• Baud Rate: Configurable from 5Kbps to 1Mbps

• Working Modes:

  • Normal mode

  • Loopback mode

  • Silent mode

  • Silent loopback mode

• Flexible Data Handling:

  • Supports single-frame, multi-frame, manual, cyclic, and timed sending

  • Filter to receive specific IDs or auto-reply with preconfigured data

• Data Logging: Save CAN data as TXT or Excel for analysis

• Timestamp Support: CAN send/receive data with a time scale for sequential display

• USB Virtual COM Port: Baud rate configurable (9600–2000000bps, default 2000000bps)

• Configuration: Set parameters via software or serial command, settings retained after power-off

• Protection: Built-in TVS (Transient Voltage Suppressor) to guard against surge and transient voltages

• Cross-Platform Support: Works with Windows XP/7/8/10/11 and Linux (Raspberry Pi OS, Ubuntu on Jetson Nano)

• Software & Development: Comes with master software for Windows, supports secondary development by modifying send/receive commands

Specifications

• Chipset: STM32F103

• Interface: USB to CAN

• CAN Baud Rate: 5Kbps–1Mbps configurable

• USB Baud Rate: 9600–2000000bps configurable

• Supported Systems: Windows XP/7/8/10/11, Raspberry Pi OS, Ubuntu (Jetson Nano)

• Protection: Onboard TVS surge suppression

• Dimensions: Compact adapter design

Applications

• Automotive diagnostics and ECU communication

• Industrial equipment monitoring and control

• Embedded CAN bus development

• Robotics and IoT systems requiring CAN bus connectivity

• Data logging and protocol analysis

Package Includes

• 1 × USB to CAN Adapter Model A (Waveshare)

• 1 × USB Cable (depending on package)

Why Choose This Adapter?

The Waveshare USB to CAN Adapter Model A provides a stable STM32-based solution for CAN bus communication. With multi-system support, configurable modes, and robust data handling, it’s perfect for developers, engineers, and technicians working with CAN-based networks.

Simplify CAN bus communication with the USB to CAN Adapter Model A – reliable, flexible, and developer-friendly.
