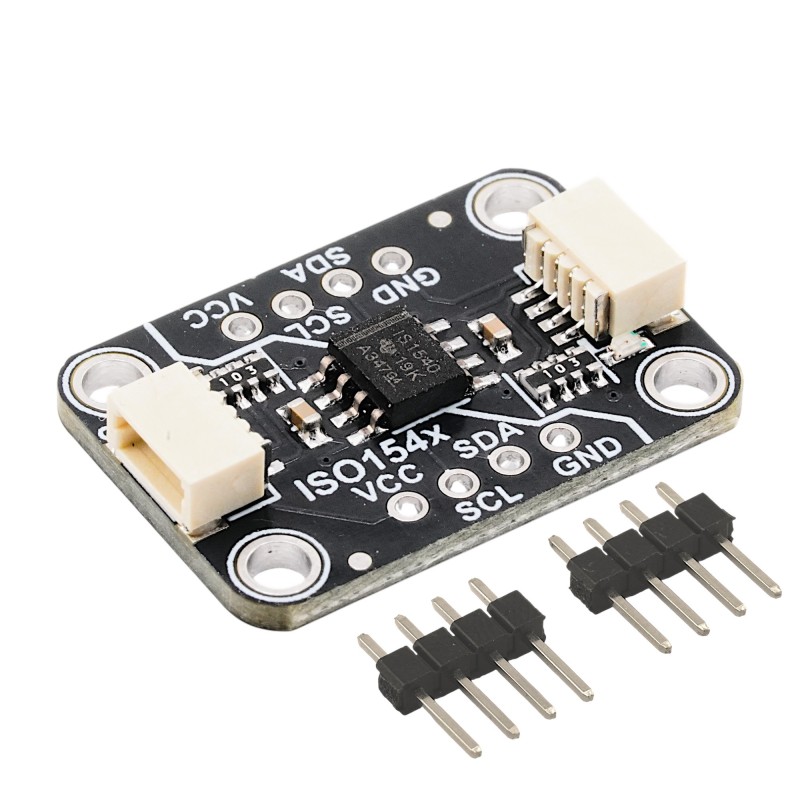

    ISO1540 Bidirectional I2C Isolator Module – STEMMA QT / Qwiic Compatible

    RBD-4083

    The ISO1540 is a bidirectional I2C isolator module designed to provide full electrical isolation between two I2C bus segments. It allows safe and reliable communication between controllers and peripherals that operate on different grounds or power domains, helping reduce noise and protect sensitive electronics.

    BDT 790
    BDT 790 BDT 790 BDT 790 BDT 790
    Tax excluded Tax includedTax excludedTax includedTax excluded
    BDT 790 Tax excluded
    BDT 790 Tax included
    BDT 0 Tax
    BDT 790 Tax excluded
    BDT 0 Tax
    BDT 790 Tax included
    Quantity
    Last items in stock
    1 Item

    Only 1 item left in stock
    Description

    Short Description

    The ISO1540 is a bidirectional I2C isolator module designed to provide full electrical isolation between two I2C bus segments. It allows safe and reliable communication between controllers and peripherals that operate on different grounds or power domains, helping reduce noise and protect sensitive electronics.

    Key Features

    • Bidirectional I2C bus isolation

    • Full electrical isolation between two I2C sides

    • Supports standard and fast-mode I2C operation

    • Clock stretching supported

    • Independent power supply on each isolated side

    • STEMMA QT / Qwiic connectors available and compatible

    Technical Specifications

    • Isolation IC: ISO1540

    • Function: Bidirectional I2C isolator

    • Communication Interface: I2C

    • Maximum I2C Clock Speed: Up to 1 MHz

    • Supply Voltage Range (each side): 3.0V to 5.5V

    • Isolation Rating: 2500 Vrms

    • Output Type: Open-drain

    • Sink Current Capability:

      • Side 1: 3.5 mA

      • Side 2: 35 mA

    • Transient Immunity: ±50 kV/µs (typical)

    • Operating Temperature Range: −40°C to +125°C

    • Onboard Pull-Up Resistors: 10 kΩ per side

    • Connectors:

      • STEMMA QT / Qwiic JST-SH 4-pin connectors on both sides

      • Breakout pads for power, ground, SDA, and SCL

    Applications / Use Cases

    • Isolated sensor interfaces

    • Noise reduction in I2C communication

    • Power monitoring and industrial control systems

    • Mixed-voltage embedded systems

    • Robotics and automation projects

    • Educational and laboratory setups

    Package Includes

    • 1 x ISO1540 bidirectional I2C isolator module

    Notes / Warnings

    • Each side of the isolator must be powered separately

    • Verify both power LEDs are on before communication

    • QT cable not included

    • Ensure voltage levels on each side are within supported range
