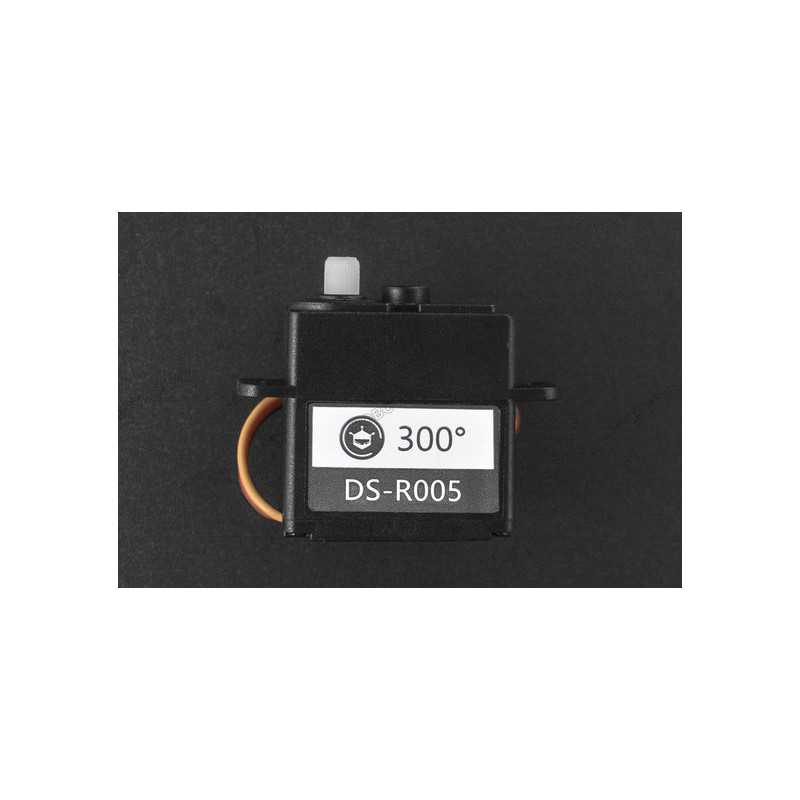

The 2Kg 300° Clutch Servo DFRobot is a powerful and versatile servo motor that is ideal for a wide range of applications. It features a high stall torque, stable performance, accurate running angle, and easy installation. The servo is also very efficient and can operate fluently with minimal power. Featured By RoboticsBD.
When a servo is operated under complex circumstances such as robot and model, it may get stuck, be burned, or damaged due to external forces, which could bother you a lot...
Now DFRobot is launching a series of servos with clutch function and electronic protection that can solve your problems perfectly.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Clutch function
When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through clutch function, which prevents it from being damaged.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Electronic protection
After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
This servo features large torque, stable performance, accurate running angle and easy to install. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 6kg.cm. Since there is no limit switch inside the servo, users can make the servo rotate smoothly in 360 degrees (manually only). Besides, the servo could operate fluently with minimal power, and you can just supply power to it by normal battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum 300 degrees rotation angle within the pulse range of 500-2500μsec.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- Built-in clutch mechanism protects servo from damage
- Rotational angle of around 300°
- Holding torque of 2kg
- Gives way and activates the clutch when the resisting force reaches more than 1kg of torque
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Picking out specifically weighted items
- Robotic hands
- Pan and tilt units
- Camera mounts
- And more
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Rotational Angle |
Around 300° |
| Holding Torque |
2kg |
| Stall Torque |
2.5kg |
| Operating Voltage |
4.8-6V |
| No-Load Speed |
0.17sec/60° (at 6V) |
| Operating Temperature |
-30°C to 60°C |
| Dimensions |
40.7mm x 20mm x 38.2mm |
| Weight |
55g |
| Shipping Weight |
0.105 kg |
| Shipping Dimensions |
5 × 5 × 3 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
Servo Internal structure
Package Includes:
1 x 2Kg 300° Clutch Servo
