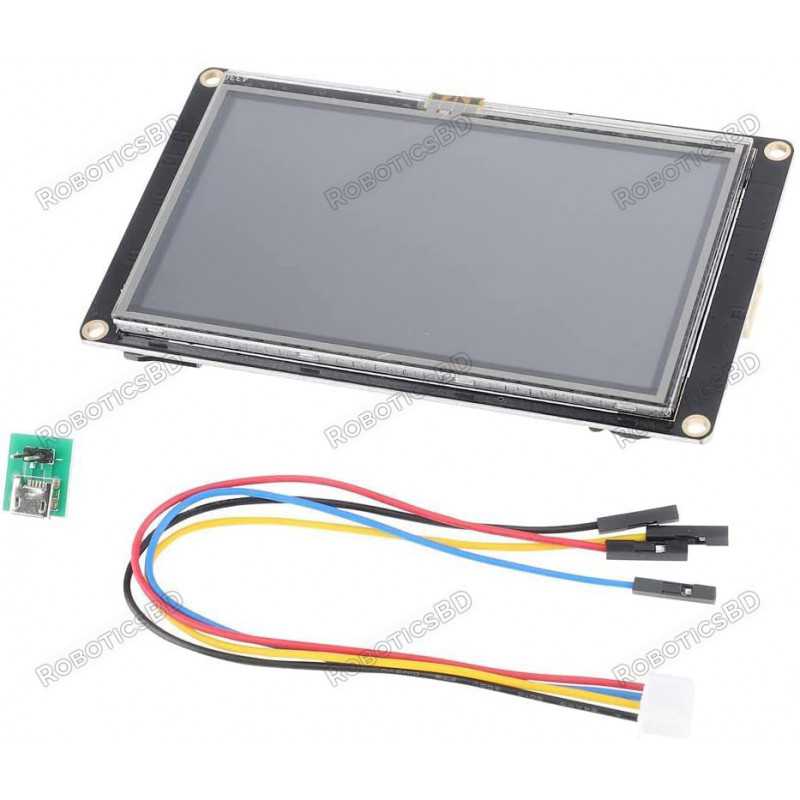

The Nextion 7" Display NX8048K070 is a powerful resistive touch screen HMI (Human Machine Interface) display. With its high-quality touch screen panel and 800x480 resolution, it provides a visually immersive and user-friendly experience. The display is designed to be easily integrated with popular development platforms like Arduino and Raspberry Pi through its UART communication interface. Featured By RoboticsBD.
This enhanced version of Nextion display offers additional functionalities, including built-in RTC (Real-Time Clock), data saving capability to Flash, GPIO support, larger flash capacity, and a faster CPU. These features enhance the performance and versatility of the display, allowing for more complex and advanced projects.
Nextion comprises both hardware (TFT boards) and software (Nextion editor) components, ensuring a seamless and integrated development experience. The display's use of a single serial port for communication eliminates the need for complex wiring, making it convenient and hassle-free.
Product Images are shown for illustrative purposes only and may differ from the actual product.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Features:
- High-quality resistive touch screen panel with a 7" display size
- Offers a resolution of 800x480 for clear and detailed visuals
- UART communication interface for easy integration with Arduino and Raspberry Pi
- Enhanced version with added features such as built-in RTC, Flash data storage, GPIO support, larger flash capacity, and faster CPU
- Simplifies wiring by utilizing only one serial port for communication
- Provides a user-friendly interface for developing interactive and intuitive applications
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Applications:
- Human Machine Interface (HMI) applications
- Touch screen displays for Arduino and Raspberry Pi projects
- Home automation systems with touch-based controls
- Interactive control panels for industrial machinery and equipment
- Information kiosks and interactive displays
- IoT (Internet of Things) devices with graphical interfaces
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
| General Specification |
| Product Name | Nextion 7" Display NX8048K070 |
| Display Type | UART HMI LCD Panel |
| Resolution | 800x480 pixels |
| Color Depth | 64K colors (16 bit 565, 5R-6G-5B) |
| Layout Size | 181(L)×108(W)×9.3(H) mm |
| Active Area (A.A.) | 164.90mm(L)×100.00mm(W) |
| Visual Area (V.A.) | 154.08mm(L)×85.92mm(W) |
| Touch Type | Resistive |
| Touches | > 1 million |
| Backlight | LED |
| Backlight Lifetime (Average) | >30,000 Hours |
| Brightness | 230 nit (NX8048K070_011R) |
| Weight | 216g (NX8048K070_011N) |
| Operating Voltage | 4.75V-7V |
| Operating Current (VCC=+5V) | 510mA (Brightness at 100%) |
| SLEEP Mode Current | 15mA |
| Shipment Weight | 0.337 kg |
| Shipment Dimensions | 20 × 8 × 4 cm |
Please allow 5% measuring deviation due to manual measurement.
RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD
Documentation:
- Datasheet
Package Includes:
1 x Nextion 7" Display NX8048K070 Resistive Touch Screen HMI Display
