Product Description

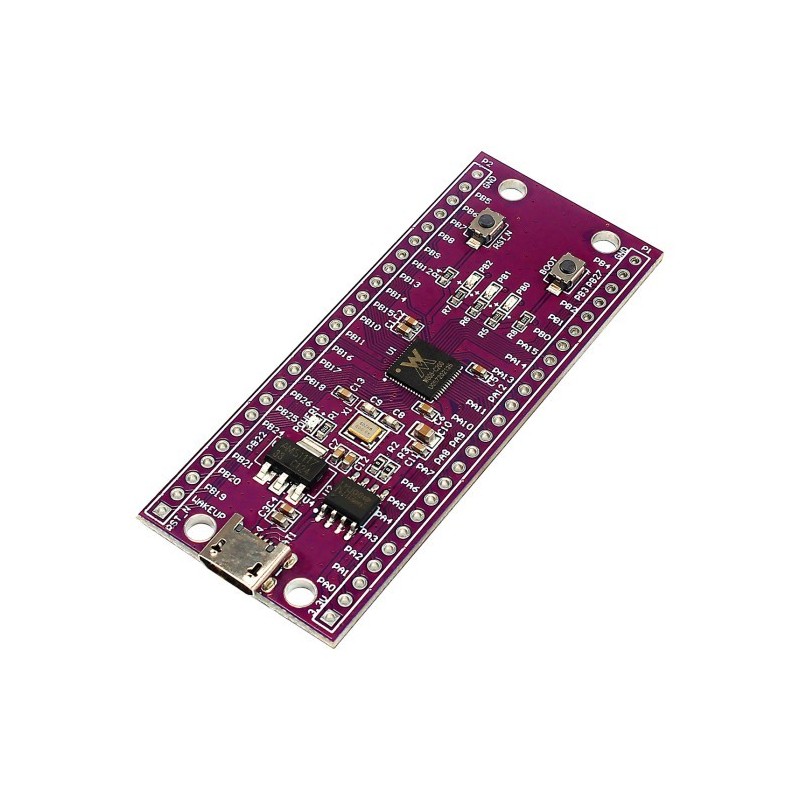

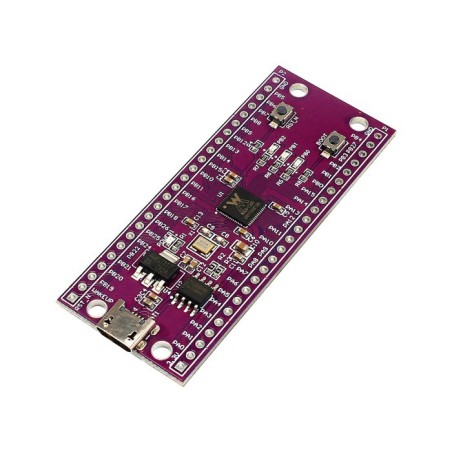

The W806 Microcontroller Development Board is a high-performance 32-bit MCU platform designed for rapid prototyping, embedded systems, and IoT development. Powered by the XT804 processor running at 240MHz, it comes equipped with a DSP, floating-point unit, and security engine, making it suitable for both advanced and resource-intensive applications.
With 1MB of onboard Flash, 288KB RAM, and support for up to 64MB external PSRAM, the W806 offers plenty of memory for complex projects. Its wide range of integrated peripherals — including multiple UARTs, SPI, I²C, ADC, PWM, and LCD support — provides developers with versatile connectivity and control options. Whether you are building robotics, IoT devices, or experimenting with embedded projects, the W806 delivers a powerful, feature-rich, and reliable platform.
Key Features & Specifications
Processor: 32-bit XT804 core, 240MHz, with DSP, floating-point unit, and security engine
Memory: 1MB Flash, 288KB RAM, external PSRAM support up to 64MB
UART: 6 high-speed UART interfaces
ADC: 4-channel 16-bit ADC, max sampling rate 1KHz
SPI: 1 high-speed SPI (slave, up to 50MHz), plus master/slave SPI interface
SDIO:
1 × SDIO_HOST (SDIO2.0, SDHC, MMC4.2)
1 × SDIO_DEVICE (SDIO2.0, up to 200Mbps throughput)
I²C: 1 × I²C controller
GPIO: Up to 44 GPIO pins
PWM: 5-channel PWM controller
I²S: Full-duplex I²S controller
LCD Controller: Supports 4×32 interface
Touch Sensors: 15 integrated capacitive touch inputs
Other Interfaces: 1 × 7816 interface for smart card communication
Applications: IoT, robotics, automation, smart devices, embedded systems
Applications
IoT (Internet of Things) devices and gateways
Robotics and automation control systems
Smart home and consumer electronics
Industrial monitoring and control
Educational projects and embedded system learning
Touch sensor-based applications
Package Includes
Why Choose the W806 Development Board?
With its 240MHz processing power, rich peripherals, and advanced memory support, the W806 MCU board delivers both performance and flexibility. It is perfect for beginners learning embedded programming as well as professionals designing complex IoT and automation solutions.
Upgrade your embedded development with the W806 Microcontroller Development Board — a powerful, flexible, and cost-effective solution for your next project!
