1 Channel 24V Relay Board Module with OPTO Isolation Support High or Low Level Trigger

RBD-2225

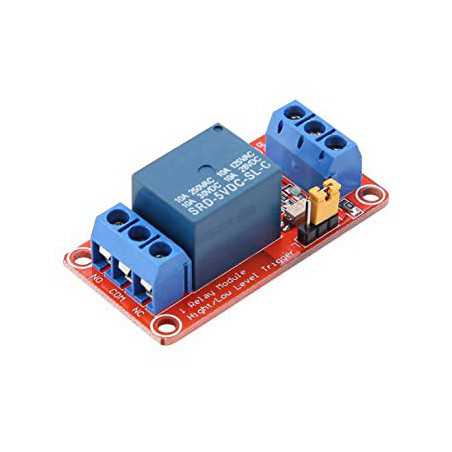

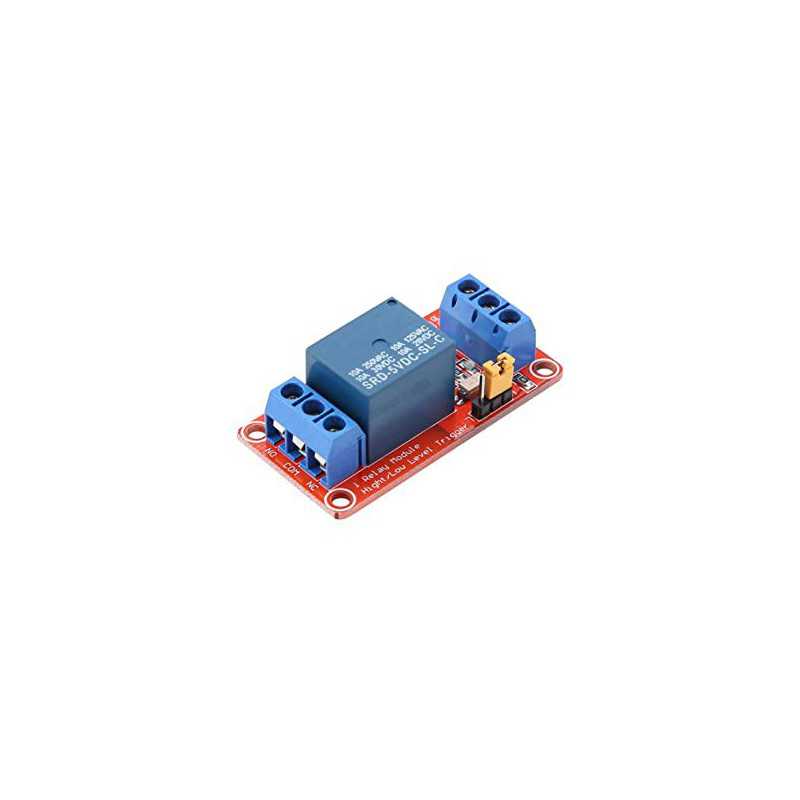

  • Output SPDT Relay.
  • Header connector for connecting power and trigger voltage.
  • LED indicates relay status.
  • Screw terminal connector for easy relay output connection.

Note: Relay brand may vary from actual product as our stock rotates.

BDT 145.00
BDT 145.00 BDT 145.00 BDT 145.00 BDT 145.00
Tax included Tax excluded Tax included Tax excluded
BDT 145.00 Tax excluded
BDT 145.00 Tax included
BDT 0.00 Tax
BDT 145.00 Tax excluded
BDT 0.00 Tax
BDT 145.00 Tax included
Quantity
In-Stock
91 Items

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Description

This is a single channel relay board with one 24 volts high current relay. It is an ideal board to control & switch high current loads like a fan, lights, low power heater coils. It not only provides switching but also provides isolation between the power device and your micro-controller. Devices up to 5 Ampere can be switched using this relay.

This relay module has an onboard driver and a led to indicate the Relay Status (ON/OFF). Since this Relay board has an onboard driver transistor to provide the relay with the necessary holding and latching current these relays can work with any microcontroller, Arduino, Intel Edison Boards, Beagle-bone  & Raspberry pi as well.. Featured By RoboticsBD.

Product Images are shown for illustrative purposes only and may differ from the actual product.

Note: Relay brand may vary from actual product as our stock rotates.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Features:

  1. Maximum load: AC 250V/10A, DC 30V/10A
  2. Uses SMD OPTOCOUPLER isolation, with a trigger current of only 5mA
  3. Available in 5V, 9V, 12V, and 24V
  4. Can be set to high or low triggered by jumper
  5. Fault-tolerant design, even if the control line is broken, the relay will maintain
  6. Has a power indicator (green) and relay status indicator (red)
  7. Compact size: 502618.5mm
  8. Has four mounting bolt holes, hole size 3.1mm, pitch 44.5*20.5mm

Interface:

  1. Input:
    • VCC: Relay power supply +
    • GND: Relay power supply -
    • IN: Signal trigger input (High or Low Level Signal, select via jumper)
  2. Output:
    • NO: Relay normally open
    • COM: Relay common pin
    • NC: Relay normally closed

High or Low Level Trigger Select:

  1. Use High Level Trigger:
    • When "IN" input High Level Signal, the "NO" connects with "COM"
    • When "IN" input Low Level Signal, the "NC" connects with "COM"
  2. Use Low Level Trigger.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Applications:

  1. This relay board module is suitable for a variety of high-current applications, including industrial automation and home automation systems, as well as DIY electronics projects.
  2. It can be used to switch AC or DC loads on and off and is easily controlled via a microcontroller or other external signal.
  3. Suitable for both hobbyist and commercial product development.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

General Specification
Maximum Load AC 250V/10A, DC 30V/10A
Isolation SMD Optocoupler, trigger current of only 5mA
Relay Power Supply 5V, 9V, 12V, and 24V available
Trigger Select High or low, set via jumper
Fault-Tolerant Design Relay will maintain even if control line is broken
Indicators Power (green) and relay status (red)
Size 50mm x 26mm x 18.5mm
Mounting Holes Four holes, 3.1mm in diameter, with a pitch of 44.5mm x 20.5mm
Input VCC Relay power supply positive
Input GND Relay power supply negative
Input IN Signal trigger input for high or low level signal, select via jumper
Output NO Relay normally open
Output COM Relay common pin
Output NC Relay normally closed
High Level Trigger IN input high level signal, NO connects with COM; IN input low level signal, NC connects with COM
Low Level Trigger IN input low level signal, NO connects with COM; IN input high level signal, NC connects with COM
Shipment Weight 0.03 kg
Shipment Dimensions 12cm x 8cm x 4cm

Please allow 5% measuring deviation due to manual measurement.

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Package Includes:

1 x 1 Channel 24V Relay Board Module with OPTO Isolation Support High or Low Level Trigger

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD RoboticsBD

Product Details
RBD-2225
91 Items

Specific References

EAN13
2225
Comments (0)
Grade
No customer reviews for the moment.
