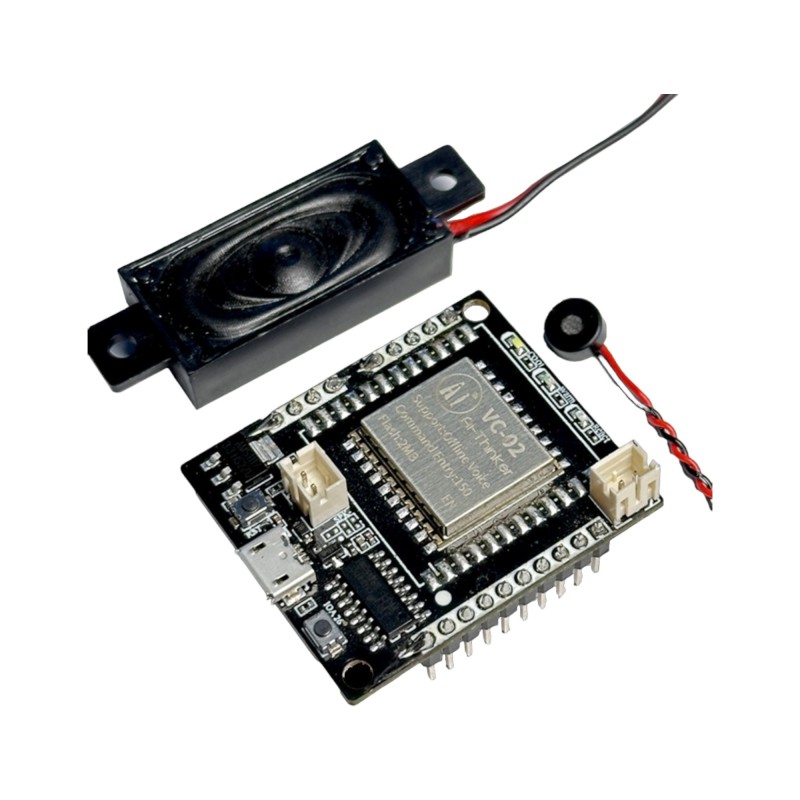

The Ai-Thinker VC-02 Kit is a compact and cost-effective offline voice recognition development board, designed around the VC-02 module and compatible with the VC-01-Kit. It integrates the CH340C USB-to-serial chip, enabling easy debugging and firmware upgrades via USB. Powered by the US516P6 speech recognition chip, the VC-02 Kit supports up to 150 local offline voice commands without the need for internet connectivity. It runs on a 32-bit RISC core at 240MHz, with built-in DSP, floating-point unit (FPU), and FFT accelerator for efficient signal processing. Equipped with 242KB SRAM, 2MB flash, UART, I2C, DAC, PWM, and configurable GPIOs, the module provides versatile connectivity and expandability. Designed for smart home automation, voice-controlled appliances, toys, and lighting, the VC-02 Kit offers an easy-to-use, low-cost solution for offline voice interaction projects. Featured By RoboticsBD.
Product Images are shown for illustrative purposes only and may differ from the actual product.
